Factory Price 1040-1400MHz Cavity Filter with Multi-Stage Rejection
The 1040-1400MHz cavity filter is a defence for your signal path, providing established cavity architecture and critical rejection that value. At Keenlion, we offer great quality products directly from the factory with three zones of rejection and lower loss. Customerized tuning is highly appreciated and there is no limitation on orders.
Main Indicators
|
Product Name |
|
|
Passband |
1040~1400 MHz |
|
Insertion Loss in Passbands |
≤1.0 dB |
|
VSWR |
≤1.4:1 |
|
Rejection |
≤80dB @DC-740 MHz ≤65dB @1700 MHz-2000MHz ≤50dB @2000 MHz-6000MHz |
|
Impedance |
50Ω |
|
Material |
Aluminum |
|
Connectors |
SMA-Female |
|
Power |
50W |
|
Surface Treatment |
Spray Paint |
|
Dimension Tolerance |
As Below↓ (±0.5mm） |

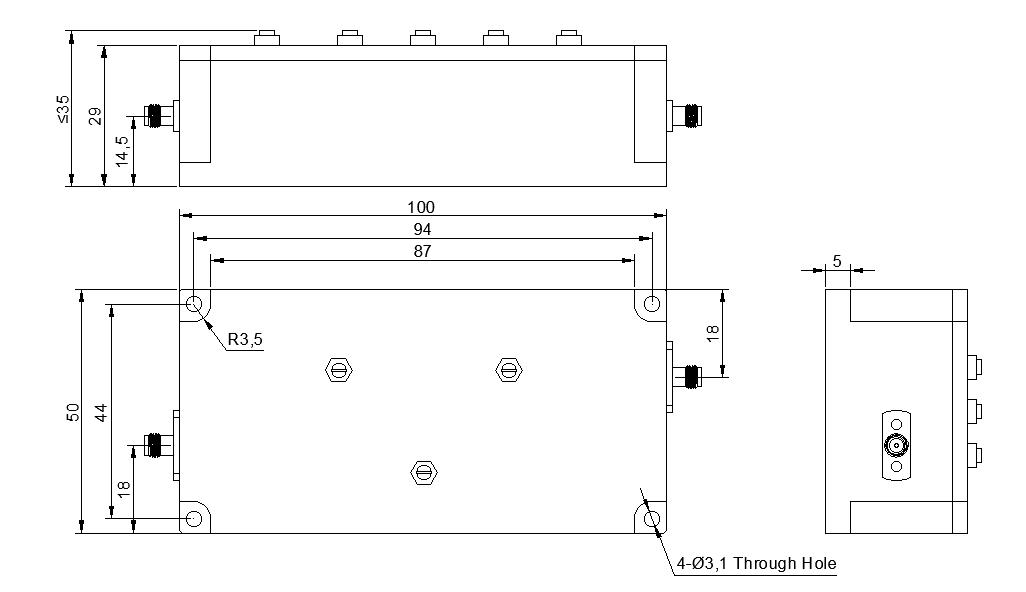

Outline Drawing
One Passband, Three Layers of Protection
1040-1400MHz Cavity Filter allows the signals to pass through and shields it from the ambient noise. The insertion loss of this product is not more than 1.0dB and VSWR is not more than 1.4:1 for the 1040-1400MHz range. The ultimate feature of this filter is stepped rejection (≥80dB from DC to 740MHz, ≥65dB from 1700-2000MHz and ≥50dB from 2000-6000MHz). There will be no loss in-band of your frequency (1040-1400 MHz) due to the cavity filter's rejection of both
Built for Real RF Environments – And Your Exact Needs
Every system will be built completely differently and as such, will require different connector and spacing options. The 1040-1400 MHz cavity filter comes as a standard product with a strong aluminum housing, SMA female connectors, 50W of power handling capability, and painted. At Keenlion, being a real factory, you can fully custom design your 1040-1400 MHz cavity filter to your specific needs by custom designing through all features such as the dimension tolerance (0.5 mm) and being able to fine-tune the rejection profile.
When you buy a 1040-1400MHz Cavity Filter from us, it won't be just a generic product off of a shelf; rather, it will have been fully customized and manufactured specifically for your frequency plan.
