1709.5-1784.5MHz/1804.5-1879.5MHz Microwave Cavity Duplexer Diplexer
Pass-band TX: 1709.5-1784.5 MHz • Pass-band RX: 1804.5-1879.5 MHz • Insertion loss ≤1.0 dB • VSWR ≤1.3:1 • Power handling 10W • Compact 105×90×43 mm black-plated housing • Samples in stock • Competitive factory prices • Professional after-sales support • 20-year manufacturing heritage • Full custom frequency, connector & mounting options
The 1709.5-1784.5MHz/1804.5-1879.5MHz Cavity Diplexer is engineered to operate with extreme precision within these specific frequency bands.At Keenlion, we provide professional pre - and post - sales support.
Cavity Duplexer Main Indicators
|
Number |
Items |
Specifications |
|
|
1 |
Cavity Diplexer |
Rx |
Tx |
|
2 |
Centre Frequency |
1747MHz |
1842MHz |
|
3 |
Passband |
1709.5-1784.5MHz |
1804.5-1879.5MHz |
|
4 |
Insertion Loss |
≤1dB |
≤1dB |
|
5 |
VSWR |
≤1.3:1 |
≤1.3:1 |
|
6 |
Rejection |
≥60dB@1804.5-1879.5 MHz |
≥60dB@1709.5-1784.5 MHz |
|
7 |
Impedance |
50 Ohms |
|
|
8 |
Input & Output Termination |
SMA Female |
|
|
9 |
Operating Power |
10W |
|
|
10 |
Operating Temperature |
-20℃ To +65℃ |
|
|
11 |
Material |
Aluminum |
|
|
12 |
Surface Treatment |
Black Paint |
|
|
13 |
Size |
As below ↓（±0.5mm） Unit/mm |
|

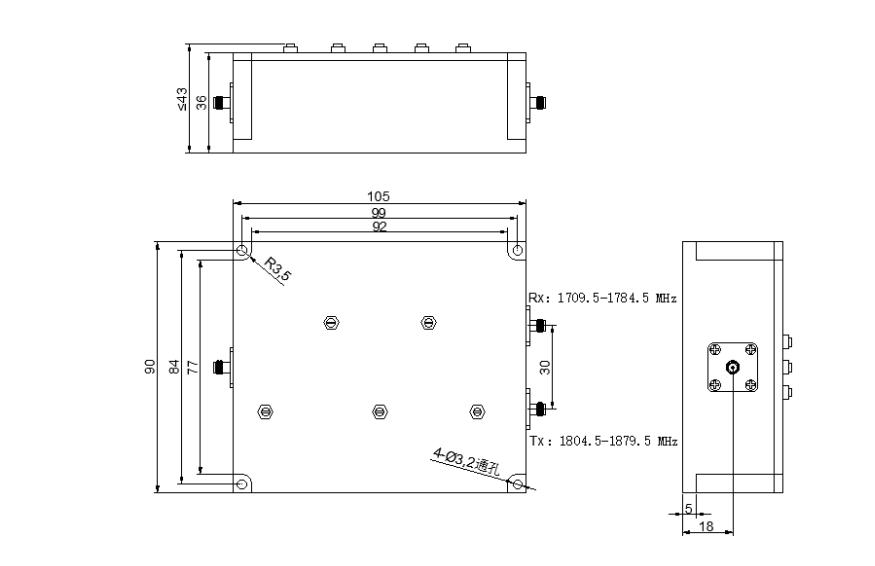

Outline Drawing
Precision Electrical Performance
Our 1709.5-1784.5MHz/1804.5-1879.5MHz Cavity Diplexer stores and releases energy in quarter-wave coaxial cavities, creating a 75 MHz split that keeps transmit and receive paths electrically separate. Each Cavity Diplexer is tuned on a 20 GHz VNA to guarantee insertion loss ≤1.0 dB and TX/RX rejection ≥60 dB, ensuring your base-station, repeater or DAS head-end runs without self-quieting.
Factory Backbone – Why Keenlion
• 20-year Chengdu plant machines, plates, tunes and tests every Cavity Diplexer under one roof • 7-day prototype lead, 21-day volume schedule • Insertion loss, isolation and VSWR verified on signed VNA plot • Competitive factory prices with no distributor margin • Free samples shipped in 48 hours • Professional after-sales support for life of the Cavity Diplexer
Global Market Fit
When engineers ask for a reliable Cavity Diplexer for 1.7 GHz / 1.8 GHz split, the 1709.5-1784.5MHz/1804.5-1879.5MHz Cavity Diplexer answers with metal, not software. Email sales@keenlion.com for data sheets, CAD files and factory pricing on the Cavity Diplexer—ship tomorrow, lock your duplex today.
