China 2-8GHz 40dB Directional Coupler – Factory Direct Manufacture and Factory

2‑8GHz 40dB Directional Coupler Supplier | Factory Prices & Custom Tuning | Keenlion

Short Description:

The Big Deal

•Model Number:HLDQ-AP0123-40D

• Directional Coupler provides ≥15dB directivity for clean forward sampling

•Directional Coupler maintains ≤0.4dB insertion loss across 2‑8GHz

•Long operational lifespan

keenlion can provide customize Directional Coupler, free samples, MOQ≥1

Any inquiries we are happy to reply, pls send your questions and orders.

Send email to us

Product Detail

Product Tags

A reliable 2‑8GHz 40dB directional coupler is essential for power monitoring and signal sampling. Our directional coupler offers low insertion loss, high directivity, and 150W CW handling. Keenlion is the actual factory – so we provide samples, custom tuning, and direct pricing that keeps your costs low on every directional coupler you order.

Main Indicators

Product Name	Directional Coupler
Frequency Range	2-8GHz
Insertion Loss	≤0.4dB
Main line VSWR	≤1.4
Branch Line VSWR	≤1.6
Directivity	≥15dB
Coupling	≤40±1dB
Coupling Flatness	≤±1.3dB
Power	150W(CW) / 200W(PW)
Port Connectors	SMA-K (Main Line) / SMP-J (Coupler)
Surface Finish	Silver Paintd
Operation Temperature	-40~+60℃

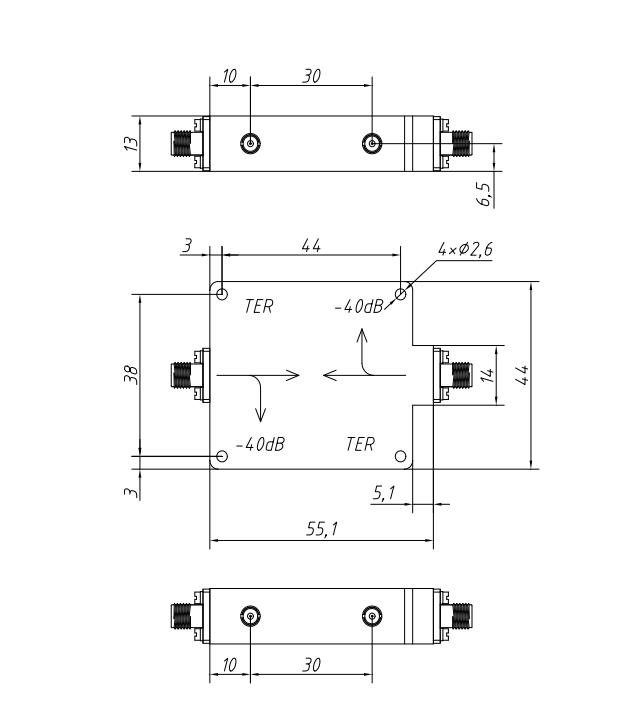

Outline Drawing

Broadband Accuracy from 2 to 8GHz

This directional coupler covers 2‑8GHz with main‑line VSWR ≤1.4 and secondary ≤1.6. Insertion loss stays under 0.4dB, so your primary signal barely feels it. Coupling is 40±1dB with flatness within ±1.3dB – meaning your sampled readings stay consistent. Directivity reaches ≥15dB, which gives this directional coupler the ability to separate forward and reflected power cleanly. Whether you're testing amplifiers or monitoring transmitters, this directional coupler gives you trustworthy data.

Built for Power and Practical Connections

Rated at 150W CW (200W peak), this directional coupler handles heavy RF loads without issue. The main line uses SMA‑K, while the coupled port uses SMP‑J – a combination that fits many modern systems. Silver paint and ‑40~+60°C operating range make this directional coupler durable in both lab and field environments. Every detail of this directional coupler is designed for real‑world use.

Why Choose a Factory‑Direct Supplier?

Keenlion manufactures this directional coupler ourselves. That means samples are available for quick evaluation. We can also customize this directional coupler – adjust frequency response, coupling value, or connectors to your exact need. And because we skip distributors, our pricing on this directional coupler is consistently competitive. Need a modified directional coupler? Just tell us. As a production factory with short lead times, we deliver your directional coupler fast and at a fair price. Contact Keenlion for your directional coupler requirements today.
