Best Power Divider Vhf Factory – high frequency broadband 8000-23000MHz Power Divider RF Microstrip Power Divider 4 Way Wilkinson Power Spilitter Divider – Keenlion Detail:

Product Overview

Sichuan Keenlion Microwave Technology 02KPD-8^23G-4S splitter designed for wideband operation from 8 to 23 GHz supporting many applications requiring high performance across a wide frequency range including alll the LTE bands through WiMax and WiFi, as well as instrumentation and more. This models provides excellent power handling up to 20W (as a splitter) with low insertion loss, good isolation, and low phase and amplitude unbalance .

The high frequency broadband 8000-23000MHz Power Divider is a universal microwave/millimeter wave component, which is a kind of device that divides one input signal energy into four outputs equal energy; It can evenly distribute one signal into four outputs. Aluminum alloy shell, It can be customized.

Key Features

Feature

Advantages
Ultra-wideband, 8 to 23 GHz Extremely wide frequency range supports many broadband applications in a single model.
Low insertion loss, 1.5 dB typ. at 23 GHz The combination of 20W power handling and low insertion loss makes this model a suitable candidate for distributing signals while maintaining excellent transmission of signal power.
High isolation, 16 dB typ. at 23 GHz Minimizes interference between ports.
High power handling:

• 20W as a splitter at 25°C

• 0.5W as a combiner

 The 02KPD-8^23G-4S is suitable for systems with a wide range of power requirements.
Low amplitude unbalance, 0.09 dB at 23 GHz Produces nearly equal output signals, ideal for parallel path and multichannel systems.
DC Passing, 368mA Supports applications where DC power is needed to pass through the RF line.

Main Indicators

Product Name Power Divider
Frequency Range 8-23 GHz
Insertion Loss ≤ 1.5dB（Does not include theoretical loss 6dB）
VSWR IN:≤1.5: 1     OUT:≤1.45:1
Isolation ≥16dB
Amplitude Balance ≤±0.4 dB
Phase Balance ≤±4°
Impedance 50 OHMS
Power Handling 20 Watt
Port Connectors SMA-Female
Operating Temperature ﹣40℃ to +80℃

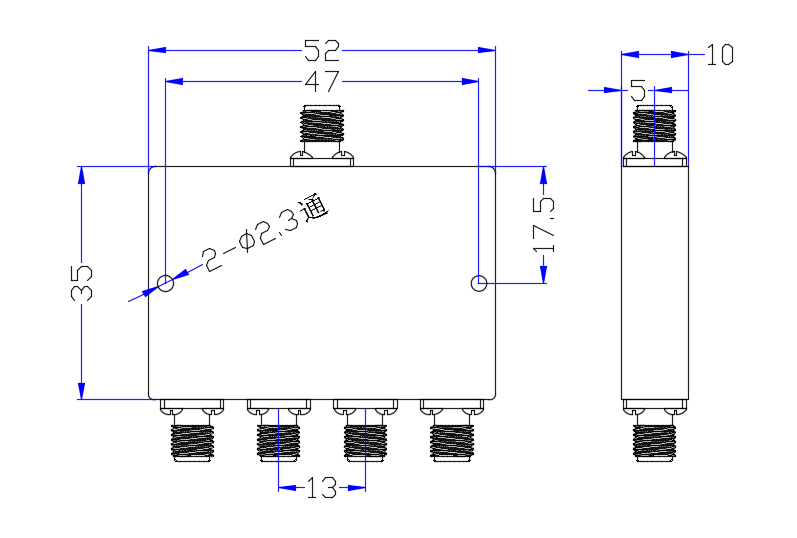

Outline Drawing

fgjf

Packaging & Delivery

Selling Units:Single item

Single package size: 6X5X2 cm

Single gross weight:0.06 kg

Package Type:Export Carton Package

Lead Time：

Quantity(Pieces) 1 - 1 2 - 500 >500
Est. Time(days) 15 40 To be negotiated

Company Profile

1.Company Name:Sichuan Keenlion Microwave Technology

2. Date of establishment:Sichuan Keenlion Microwave Technology Founded in 2004.Located in Chengdu, Sichuan Province, China.

3. Product classification:We provide high-performance mirrowave components and related services for microwave applications at home and abroad. The products are cost-effective, including various power distributors, directional couplers, filters, combiners, duplexers, customized passive components, isolators and circulators. Our products are specially designed for various extreme environments and temperatures. Specifications can be formulated according to customer requirements and are applicable to all standard and popular frequency bands with various bandwidths from DC to 50GHz.

4. Company certification:ROHS compliant and ISO9001:2015  ISO4001:2015 Certificate.

FAQ

Q:What are the specifications and styles of your existing products?

A:We provide high-performance mirrowave components and related services for microwave applications at home and abroad. The products are cost-effective, including various power distributors, directional couplers, filters, combiners, duplexers, customized passive components, isolators and circulators. Our products are specially designed for various extreme environments and temperatures. Specifications can be formulated according to customer requirements and are applicable to all standard and popular frequency bands with various bandwidths from DC to 50GHz.

Q:Can your products bring the guest’s logo?

A:Yes, our company can provide customized services according to customer requirements, such as size, appearance color, coating method, etc.
