Product Overview
The 8GHZ-12 GHz RF Cavity Filter is a universal microwave/millimeter wave component, which is a kind of device that allows a particular frequency band to block other frequencies simultaneously. The filter can effectively filter out the frequency point of a specific frequency in the PSU line or the frequency other than the frequency point to obtain a PSU signal of a specific frequency, or eliminate a PSU signal of a specific frequency. Filter is a frequency selection device, which can make specific frequency components in the signal pass through and greatly attenuate other frequency components. Using this frequency selection function of the filter, interference noise or spectrum analysis can be filtered out. In other words, any device or system that can pass specific frequency components in the signal and greatly attenuate or inhibit other frequency components is called a filter.
Typical applications
It has a good function of frequency selection and filtering in circuits and electronic high-frequency systems, and can suppress useless signals and noise outside the frequency band
It is used in aviation, aerospace, radar, communication, electronic countermeasure, radio and television and various electronic test equipment
When using, pay attention to the good grounding of the shell, otherwise it will affect the out of band suppression and flatness index
Main Indicators
| Passband | 8~12 GHz |
| Insertion Loss | ≤1.0 dB |
| VSRW | ≤1.5:1 |
| Attenuation | 20dB (min) @7 GHz 20dB (min) @13 GHz |
| Impedance | 50 OHMS |
| Port Connectors | SMA=Female |

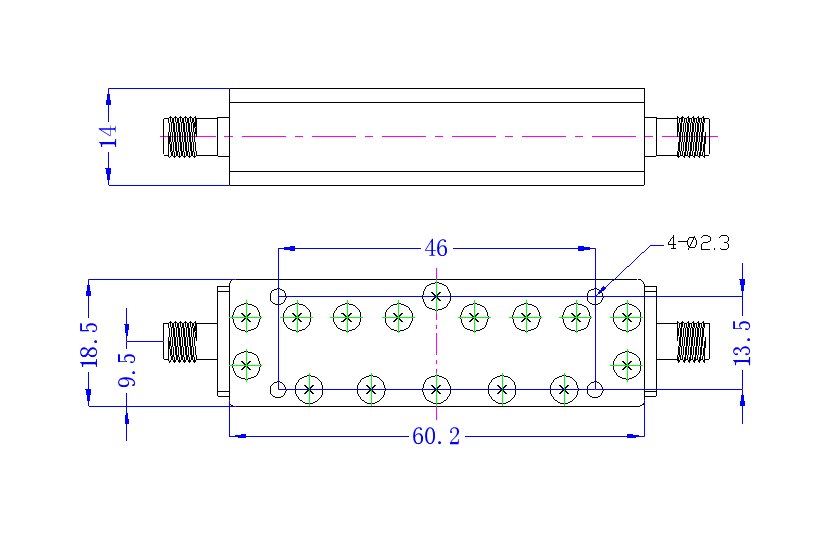

Outline Drawing
Packaging & Delivery
Selling Units:Single item
Single package size: 7X3X2.4 cm
Single gross weight:1.5.000 kg
Package Type:Export Carton Package
Lead Time：
|
Quantity(Pieces) |
1 - 1 |
2 - 500 |
>500 |
|
Est. Time(days) |
15 |
40 |
To be negotiated |
Company Profile
1.Company Name:Sichuan Keenlion Microwave Technology
2. Date of establishment:Sichuan Keenlion Microwave Technology Founded in 2004.Located in Chengdu, Sichuan Province, China.
3. Product classification:We provide high-performance mirrowave components and related services for microwave applications at home and abroad. The products are cost-effective, including various power distributors, directional couplers, filters, combiners, duplexers, customized passive components, isolators and circulators. Our products are specially designed for various extreme environments and temperatures. Specifications can be formulated according to customer requirements and are applicable to all standard and popular frequency bands with various bandwidths from DC to 50GHz.
4.Product assembly process：The assembly process shall be in strict accordance with the assembly requirements to meet the requirements of light before heavy, small before large, riveting before installation, installation before welding, inner before outer, lower before upper, flat before high, and vulnerable parts before installation. The previous process shall not affect the subsequent process, and the subsequent process shall not change the installation requirements of the previous process.
5.Quality control: our company strictly controls all indicators in accordance with the indicators provided by customers. After commissioning, it is tested by professional inspectors. After all indicators are tested to be qualified, they are packaged and sent to customers.
FAQ
Q:How often are your products updated?
A:Our company has a professional design and R & D team. Based on the principle of pushing through the old and bringing forth the new and striving for development, we will constantly optimize the design, not for the best, but for the better.
Q:How large is your company?
A:At present, the total number of people in our company is more than 50. Including machine design team, machining workshop, assembly team, commissioning team, testing team, packaging and delivery personnel, etc.
