Product Overview
The function of the power distributor is to equally divide one input satellite if signal into several outputs, usually including two power division, four power division, six power division and so on.
This chapter mainly introduces the 1-30MHz-16s power divider
The background and significance of the research since human beings entered the 20th century, with the rapid development of modern electronic and communication technology, information exchange
The flow is more and more frequent, and a variety of electronic and steam equipment have greatly affected enterprises and families in various fields. No matter which frequency band works, electronic equipment needs components with various functions, including passive components such as capacitors, inductors, resistors and power dividers, so as to realize signal matching, distribution and filtering; And active devices work together. Microwave system has all kinds of passive and active devices without exception. Their function is to process or transform microwave signals. In modern passive devices, microstrip power divider is becoming more and more important in terms of quality and weight.
Power dividers in different frequency bands are divided into different series
1. Two and three power dividers in 400mhz-500mhz frequency band are applied to general radio communication, railway communication and 450MHz wireless local loop system.
2. Two, three and four microstrip series power dividers in 800mhz-2500mhz frequency band are applied to GSM / CDMA / PHS / WLAN Indoor Coverage Project.
3. 1700mhz-2500mhz frequency band two, three and four cavity series power divider is applied to PHS / WLAN Indoor Coverage Project.
4. Microstrip two and three power dividers used in small equipment in 800mhz-1200mhz / 1600mhz-2000mhz frequency band.
The 9500 -4000 MHz Power Divider is a universal microwave/millimeter wave component, which is a kind of device that divides one input signal energy into two outputs equal energy; It can evenly distribute one signal into two outputs. Aluminum alloy shell, It can be customized
Key Features
|
Feature |
Advantages |
| Ultra-wideband, 0.95 to 4 GHz | Extremely wide frequency range supports many broadband applications in a single model. |
| Low insertion loss, 5.5 dB typ. at 4 GHz | The combination of 16W power handling and low insertion loss makes this model a suitable candidate for distributing signals while maintaining excellent transmission of signal power. |
| High isolation, 20 dB typ. at 4 GHz | Minimizes interference between ports. |
| High power handling:
• 16W as a splitter at 25°C • 0.5W as a combiner |
The 03KPD-0.95^4G-2x2S-10M-2S is suitable for systems with a wide range of power requirements. |
| Low amplitude unbalance, 0.09 dB at 2 GHz | Produces nearly equal output signals, ideal for parallel path and multichannel systems. |
Main indicators
| Product Name | Power Divider |
| Frequency Range | 0.95-4G&10MHz,DC pass@Port1&Port3 |
| Insertion Loss | ≤ 5.5dB@0.95GHz-4GHz（include theoretical loss 3dB） |
| VSWR | ≤1.5: 1 |
| Isolation | ≥20dB@0.95GHz-4GHz(Port1&Port2) |
| Amplitude Balance | ≤±1 dB |
| Impedance | 50 OHMS |
| Power Handling | 0.5 Watt |
| Port Connectors | SMA-Female |
| Operating Temperature | ﹣40℃ to +50℃ |
Outline Drawing
Packaging & Delivery
Selling Units:Single item
Single package size: 7X6X5.2 cm
Single gross weight:0.16 kg
Package Type:Export Carton Package
Lead Time：
| Quantity(Pieces) | 1 - 1 | 2 - 500 | >500 |
| Est. Time(days) | 15 | 40 | To be negotiated |
1.Power divider is a device that divides one input signal energy into two or more channels to output equal or unequal energy. It can also synthesize multiple signal energy into one output. At this time, it can also be called combiner.
2.A certain degree of isolation shall be ensured between the output ports of a power divider. The power distributor is also called over-current distributor, which is divided into active and passive. It can evenly distribute one channel of signal into several channels of output. Generally, each channel has several dB attenuation. The attenuation of different distributors varies with different signal frequencies. In order to compensate the attenuation, a passive power divider is made after adding an amplifier.
3.The assembly process shall be in strict accordance with the assembly requirements to meet the requirements of light before heavy, small before large, riveting before installation, installation before welding, inner before outer, lower before upper, flat before high, and vulnerable parts before installation. The previous process shall not affect the subsequent process, and the subsequent process shall not change the installation requirements of the previous process.
4.our company strictly controls all indicators in accordance with the indicators provided by customers. After commissioning, it is tested by professional inspectors. After all indicators are tested to be qualified, they are packaged and sent to customers.
Company profile:
1.Company Name:Sichuan Keenlion Microwave Technology
2. Date of establishment:Sichuan Keenlion Microwave Technology Founded in 2004.Located in Chengdu, Sichuan Province, China.
3. Company certification:ROHS compliant and ISO9001:2015 ISO4001:2015 Certificate.
FAQ
Q:What are the specifications and styles of your existing products?
A:We provide high-performance mirrowave components and related services for microwave applications at home and abroad. The products are cost-effective, including various power distributors, directional couplers, filters, combiners, duplexers, customized passive components, isolators and circulators. Our products are specially designed for various extreme environments and temperatures. Specifications can be formulated according to customer requirements and are applicable to all standard and popular frequency bands with various bandwidths from DC to 50GHz.
Q:Can your products bring the guest’s logo?
A:Yes, our company can provide customized services according to customer requirements, such as size, appearance color, coating method, etc.

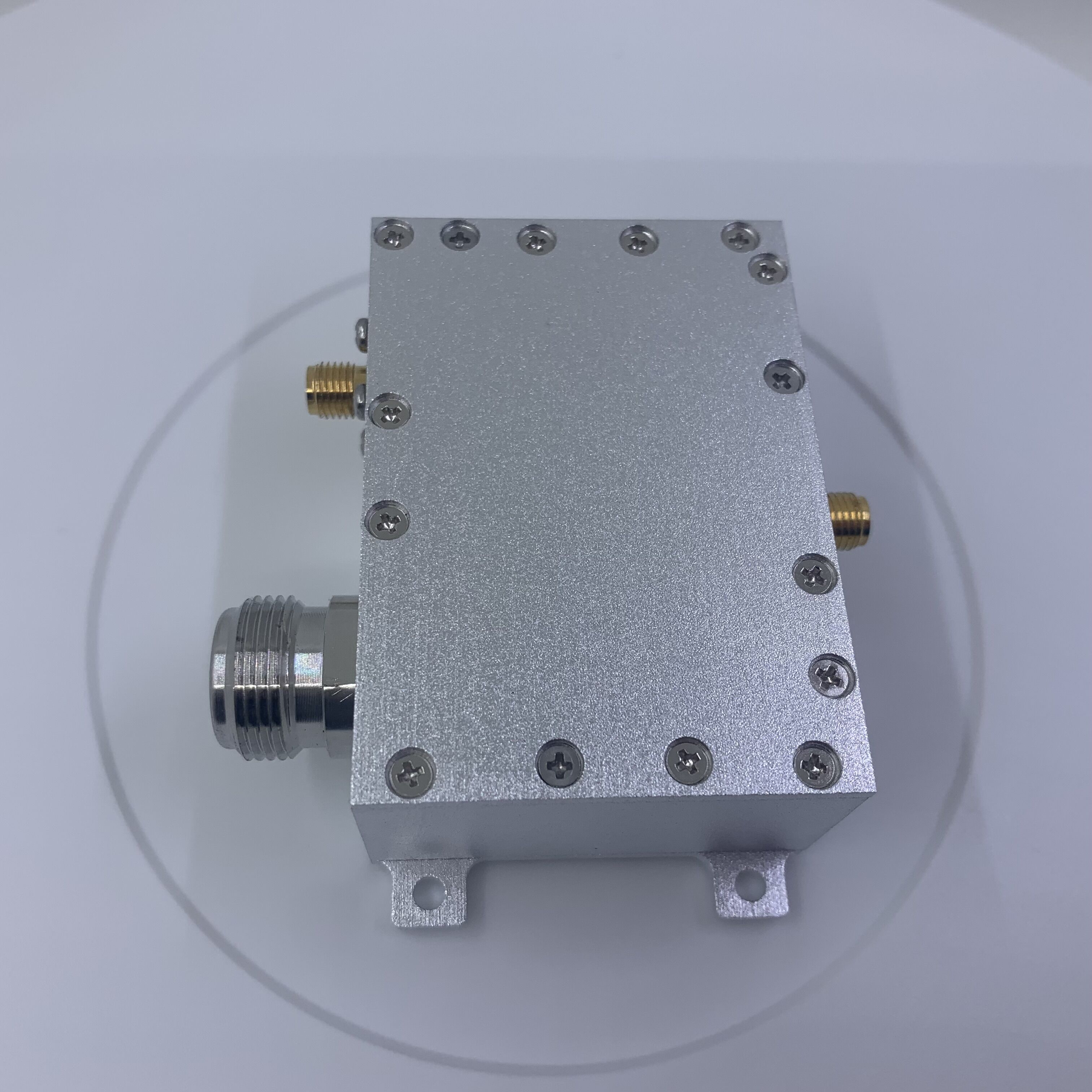

Product detail pictures:
