Product Overview
The 500-6000MHz Power Divider is a universal microwave/millimeter wave component, which is a kind of device that divides one input signal energy into two/four/eight outputs equal energy; It can evenly distribute one signal into two/four/eight outputs. Aluminum alloy shell, It can be customized
Power divider is a device that divides one input signal energy into two or more channels to output equal or unequal energy. It can also synthesize multiple signal energy into one output. At this time, it can also be called combiner.
A certain degree of isolation shall be ensured between the output ports of a power divider. The power distributor is also called over-current distributor, which is divided into active and passive. It can evenly distribute one channel of signal into several channels of output. Generally, each channel has several dB attenuation. The attenuation of different distributors varies with different signal frequencies. In order to compensate the attenuation, a passive power divider is made after adding an amplifier.
Typical applications
The technical indexes of power distributor include frequency range, bearing power, distribution loss from main circuit to branch, insertion loss between input and output, isolation between branch ports, voltage standing wave ratio of each port, etc.
1. Frequency range: This is the working premise of various RF / microwave circuits. The design structure of power distributor is closely related to the working frequency. The working frequency of the distributor must be defined before the following design can be carried out
2. Bearing power: in the high-power distributor / synthesizer, the maximum power that the circuit element can bear is the core index, which determines what form of transmission line can be used to achieve the design task. Generally, the order of power borne by the transmission line from small to large is microstrip line, stripline, coaxial line, air stripline and air coaxial line. Which line should be selected according to the design task.
3. Distribution loss: the distribution loss from the main circuit to the branch circuit is essentially related to the power distribution ratio of the power distributor. For example, the distribution loss of two equal power dividers is 3dB and that of four equal power dividers is 6dB.
4. Insertion loss: the insertion loss between input and output is caused by the imperfect dielectric or conductor of transmission line (such as microstrip line) and considering the standing wave ratio at the input end.
5. Isolation degree: the isolation degree between branch ports is another important index of power distributor. If the input power from each branch port can only be output from the main port and should not be output from other branches, it requires sufficient isolation between branches.
6. VSWR: the smaller the VSWR of each port, the better.
Main indicators 2S
| Product Name | 2Way Power Divider |
| Frequency Range | 0.5-6 GHz |
| Insertion Loss | ≤ 1.0dB（Does not include theoretical loss 3dB） |
| VSWR | IN: ≤1.8: 1(Max)@0.5-0.7GHz ≤ 1.3(Max)@0.7-6GHz
OUT:≤1.5:1(Max)@0.5-0.7GHz ≤ 1.3(Max)@0.7-6GHz |
| Isolation | 12dB（Min）@0.5-0.7GHZ19dB（Min）@0.7-6GHZ |
| Amplitude Balance | ≤±0.3 dB |
| Phase Balance | ≤±2° |
| Impedance | 50 OHMS |
| Power Handling | 20 Watt |
| Port Connectors | SMA-Female |
| Operating Temperature | ﹣40℃ to +80℃ |

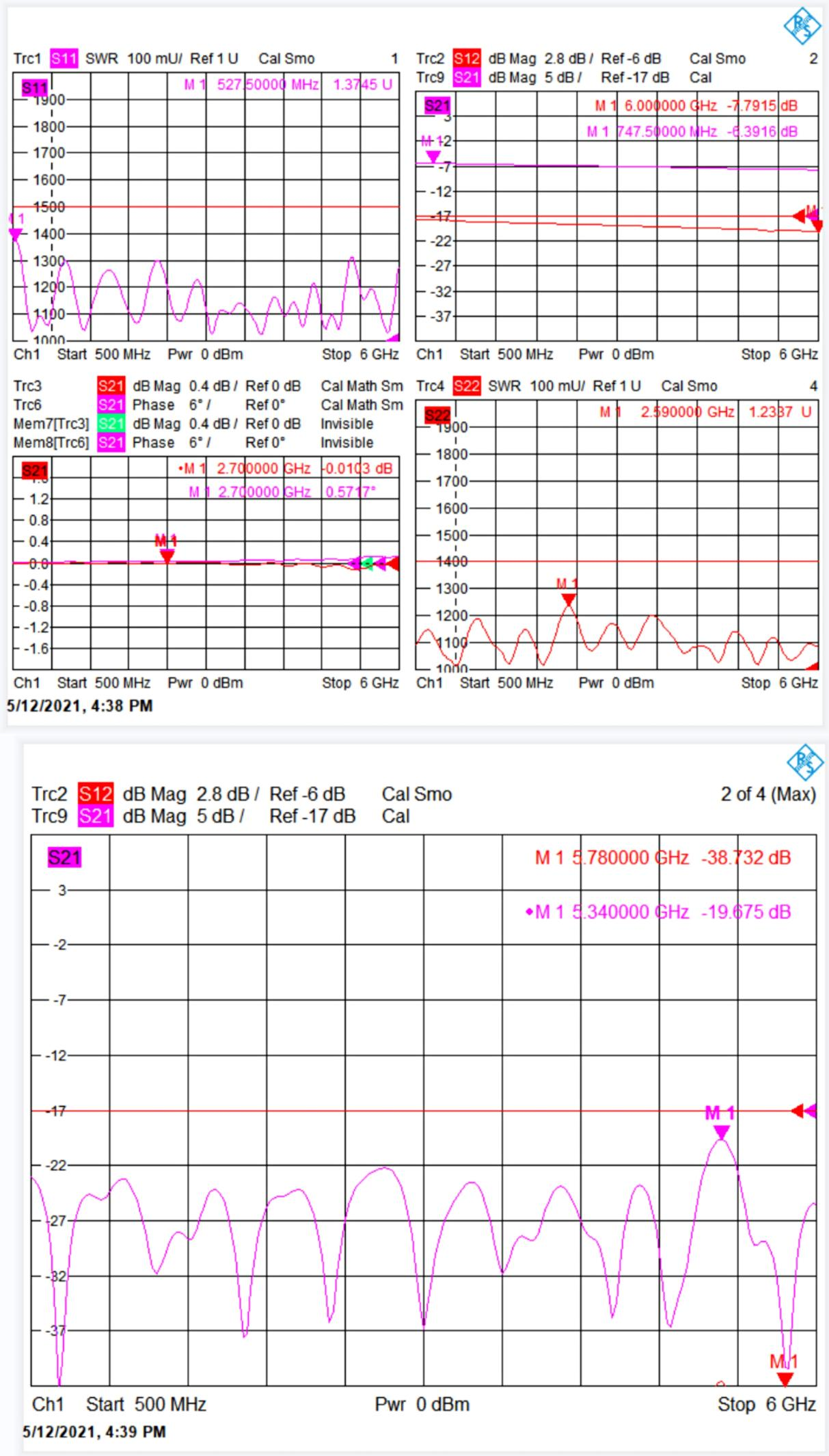

Outline Drawing 2S

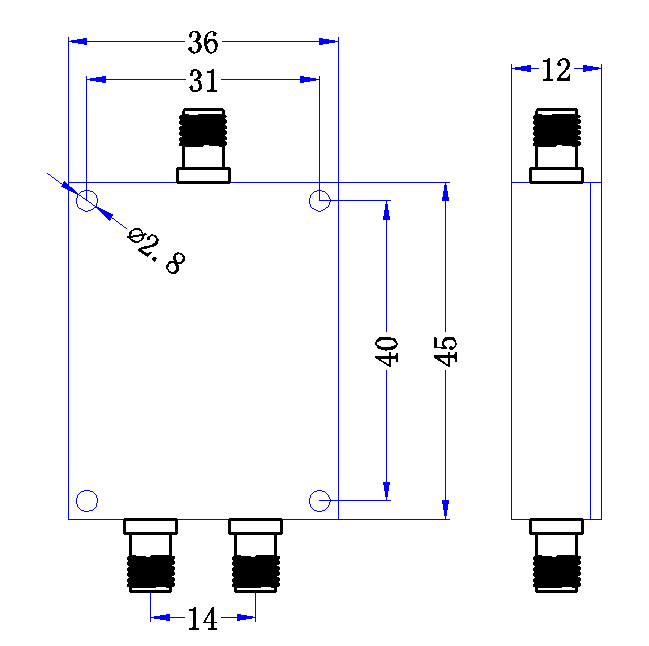

Main indicators 4S
| Product Name | 4Way Power Divider |
| Frequency Range | 0.5-6 GHz |
| Insertion Loss | ≤ 2.5dB（Does not include theoretical loss 6dB） |
| VSWR | IN:≤1.5: 1 OUT:≤1.4:1 |
| Isolation | ≥18dB |
| Amplitude Balance | ≤±0.4 dB |
| Phase Balance | ≤±6° |
| Impedance | 50 OHMS |
| Power Handling | 20 Watt |
| Port Connectors | SMA-Female |
| Operating Temperature | ﹣40℃ to +80℃ |
Outline Drawing 4S
Main indicators 8S
| Product Name | 8Way Power Divider |
| Frequency Range | 0.5-6 GHz |
| Insertion Loss | ≤ 2.5dB（Does not include theoretical loss 9dB） |
| VSWR | IN:≤1.5: 1 OUT:≤1.45:1 |
| Isolation | ≥18dB |
| Amplitude Balance | ≤±0.6 dB |
| Phase Balance | ≤±6° |
| Impedance | 50 OHMS |
| Power Handling | 30 Watt |
| Port Connectors | SMA-Female |
| Operating Temperature | ﹣40℃ to +80℃ |

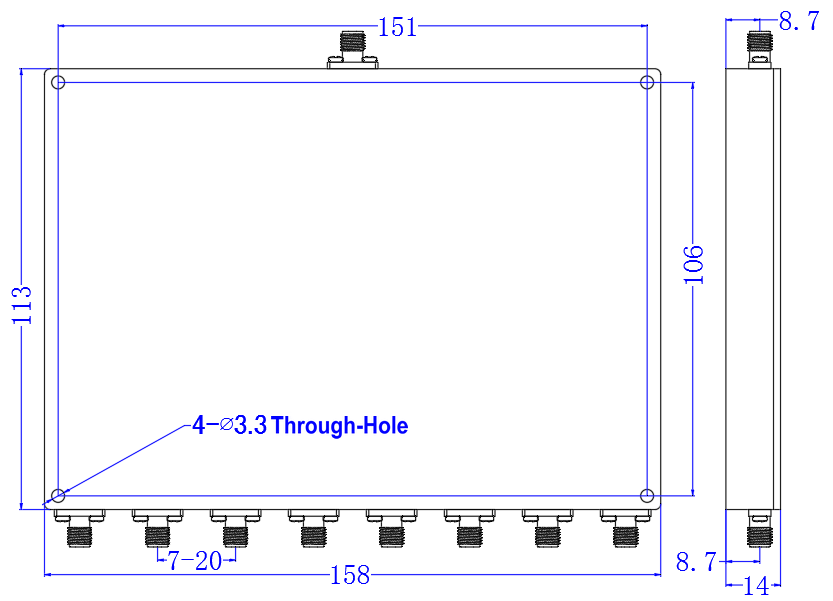

Outline Drawing 8S
Packaging & Delivery
Selling Units:Single item
Single package size: 5X6X2.4 cm/9X8X2.4cm/17X12X2.4cm
Single gross weight:0.04kg/0.15KG/0.46KG
Package Type:Export Carton Package
Lead Time：
| Quantity(Pieces) | 1 - 1 | 2 - 500 | >500 |
| Est. Time(days) | 15 | 40 | To be negotiated |
