Buy High quality Low Pass Filter High Pass Filter Band Pass Filter Suppliers – Customized RF Cavity Filter 4980MHz to 5320MHz Band Pass Filter – Keenlion Detail:

The 4980-5320MHz RF Cavity Filter is a universal microwave/millimeter wave component, which is a kind of device that allows a particular frequency band to block other frequencies simultaneously. The filter can effectively filter out the frequency point of a specific frequency in the PSU line or the frequency other than the frequency point to obtain a PSU signal of a specific frequency, or eliminate a PSU signal of a specific frequency. Filter is a frequency selection device, which can make specific frequency components in the signal pass through and greatly attenuate other frequency components. Using this frequency selection function of the filter, interference noise or spectrum analysis can be filtered out. In other words, any device or system that can pass specific frequency components in the signal and greatly attenuate or inhibit other frequency components is called a filter.

Typical applications:

It has a good function of frequency selection and filtering in circuits and electronic high-frequency systems, and can suppress useless signals and noise outside the frequency band

It is used in aviation, aerospace, radar, communication, electronic countermeasure, radio and television and various electronic test equipment

When using, pay attention to the good grounding of the shell, otherwise it will affect the out of band suppression and flatness index

Main indicators

Center Frequency	5150MHz
Pass Band	4980-5320MHz
Bandwidth	340MHz
Insertion Loss	≤2.0dB
VSWR	≤1.5
Rejection	≥60dB@4900MHz ≥60dB@5400MHz
Average Power	125W
Port Connector	SMA-Female
Surface Finish	Painted black
Dimension Tolerance	±0.5mm

Outline Drawing

Packaging & Delivery

Selling Units:Single item

Single package size: 18X7X3 cm

Single gross weight:1.5.000 kg

Package Type:Export Carton Package

Lead Time：

Quantity(Pieces)	1 - 1	2 - 500	>500
Est. Time(days)	15	40	To be negotiated

Company profile:

1.Company Name:Sichuan Keenlion Microwave Technology

2. Date of establishment:Sichuan Keenlion Microwave Technology Founded in 2004.Located in Chengdu, Sichuan Province, China.

3. Company certification:ROHS compliant and ISO9001:2015 ISO4001:2015 Certificate.

4.The assembly process shall be in strict accordance with the assembly requirements to meet the requirements of light before heavy, small before large, riveting before installation, installation before welding, inner before outer, lower before upper, flat before high, and vulnerable parts before installation. The previous process shall not affect the subsequent process, and the subsequent process shall not change the installation requirements of the previous process.

5.our company strictly controls all indicators in accordance with the indicators provided by customers. After commissioning, it is tested by professional inspectors. After all indicators are tested to be qualified, they are packaged and sent to customers.

FAQ

Q:What are the specifications and styles of your existing products?

A:We provide high-performance mirrowave components and related services for microwave applications at home and abroad. The products are cost-effective, including various power distributors, directional couplers, filters, combiners, duplexers, customized passive components, isolators and circulators. Our products are specially designed for various extreme environments and temperatures. Specifications can be formulated according to customer requirements and are applicable to all standard and popular frequency bands with various bandwidths from DC to 50GHz.

Q:Can your products bring the guest’s logo?

A:Yes, our company can provide customized services according to customer requirements, such as size, appearance color, coating method, etc.

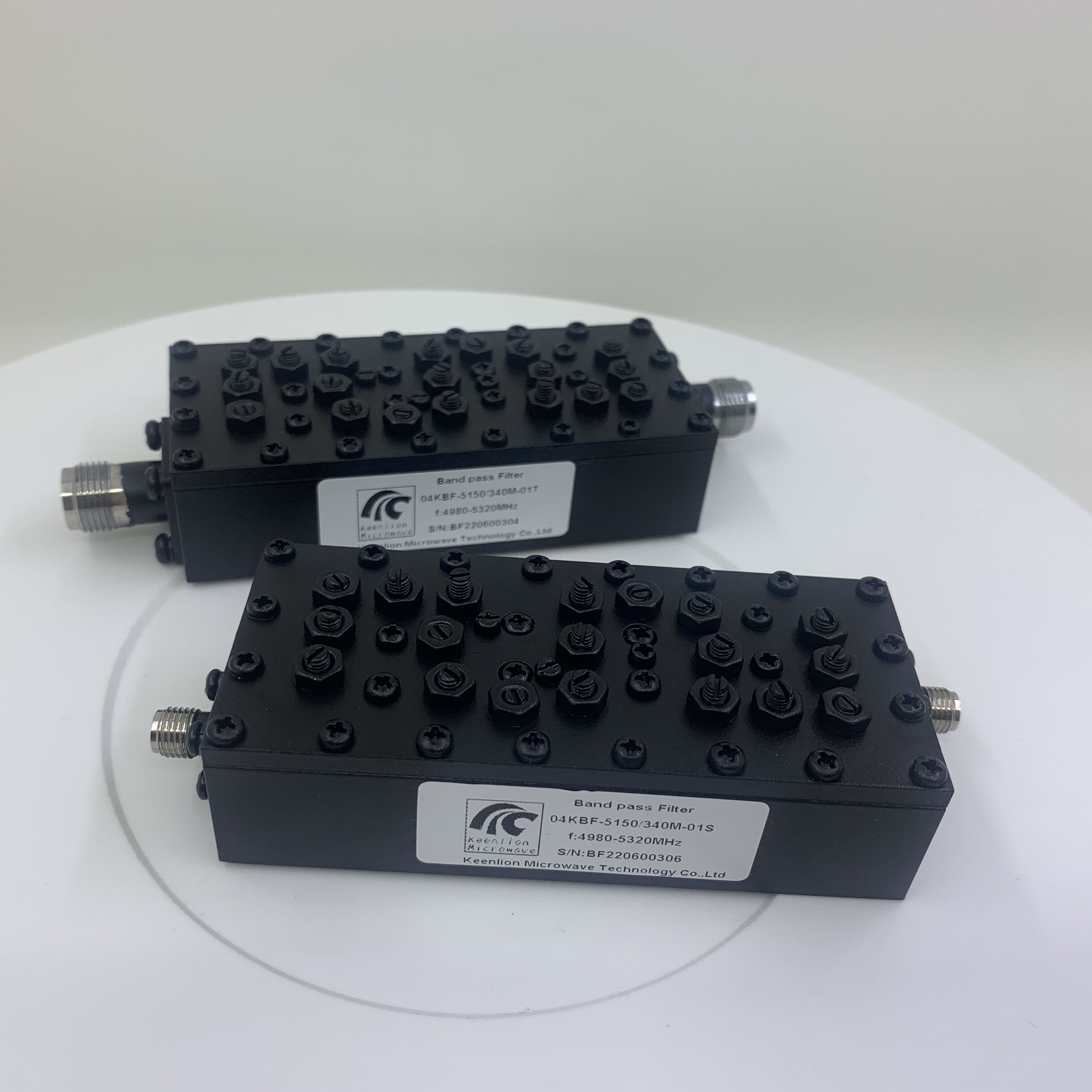

Product detail pictures:
