Buy High quality Unequal Wilkinson Power Divider Factory – High quality 20W 2 Way 2000-10000MHz SMA Female Cavity Power Divider Splitter – Keenlion Detail:
The 2-10GHz Power Divider is a universal microwave/millimeter wave component, which is a kind of device that divides one input signal energy into sixteen outputs equal energy; It can evenly distribute one signal into sixteen outputs. Aluminum alloy shell, It can be customized
Product Overview
The function of the power distributor is to equally divide one input satellite if signal into several outputs, usually including two power division, four power division, six power division and so on.
This chapter mainly introduces the 2-10GHz-2s power divider
The background and significance of the research since human beings entered the 20th century, with the rapid development of modern electronic and communication technology, information exchange
The flow is more and more frequent, and a variety of electronic and steam equipment have greatly affected enterprises and families in various fields. No matter which frequency band works, electronic equipment needs components with various functions, including passive components such as capacitors, inductors, resistors and power dividers, so as to realize signal matching, distribution and filtering; And active devices work together. Microwave system has all kinds of passive and active devices without exception. Their function is to process or transform microwave signals. In modern passive devices, microstrip power divider is becoming more and more important in terms of quality and weight.
Power dividers in different frequency bands are divided into different series
1. Two and three power dividers in 400mhz-500mhz frequency band are applied to general radio communication, railway communication and 450MHz wireless local loop system.
2. Two, three and four microstrip series power dividers in 800mhz-2500mhz frequency band are applied to GSM / CDMA / PHS / WLAN Indoor Coverage Project.
3. 1700mhz-2500mhz frequency band two, three and four cavity series power divider is applied to PHS / WLAN Indoor Coverage Project.
4. Microstrip two and three power dividers used in small equipment in 800mhz-1200mhz / 1600mhz-2000mhz frequency band.
Main indicators
|
Product Name |
Power Divider |
|
Frequency Range |
2-10GHz |
|
Insertion Loss |
≤ 1.0dB（Does not include theoretical loss 3dB） |
|
VSWR |
IN:≤1.5: 1 ，OUT≤1.3：1 |
|
Amplitude Balance |
≤±0.5dB |
|
Phase Balance |
≤±5° |
|
Isolation |
≥18dB |
|
Impedance |
50 OHMS |
|
Power Handling |
20 Watt |
|
Port Connectors |
SMA-Female |
|
Operating Temperature |
﹣30℃ to +65℃ |
Outline Drawing
Packaging & Delivery
Selling Units:Single item
Single package size: 9X4X2.5 cm
Single gross weight:0.09 kg
Package Type:Export Carton Package
Lead Time：
| Quantity(Pieces) | 1 - 1 | 2 - 500 | >500 |
| Est. Time(days) | 15 | 40 | To be negotiated |
Company profile:
Sichuan Keenlion Microwave Technology Co., Ltd. is a professional manufacturer of microwave passive components in the industry. The company is committed to providing customers with high-performance products and high-quality services to create long-term value growth for customers.
Sichuan clay Technology Co., Ltd. focuses on the independent R & D and production of high-performance filters, multiplexers, filters, multiplexers, power division, couplers and other products, which are widely used in cluster communication, mobile communication, indoor coverage, electronic countermeasures, aerospace military equipment systems and other fields. Facing the rapidly changing pattern of the communication industry, we will abide by the constant commitment of “creating value for customers”, and are confident to continue to grow with our customers with high-performance products and overall optimization schemes close to customers.
1.Company Name:Sichuan Keenlion Microwave Technology
2. Date of establishment:Sichuan Keenlion Microwave Technology Founded in 2004.Located in Chengdu, Sichuan Province, China.
3. Process flow:Our company has complete production line (Design – cavity production – assembly – commissioning – testing – delivery), which can complete the products and deliver them to customers at the first time.
4.Freight mode:Our company has cooperation with major domestic express companies and can provide corresponding Express Services according to customer requirements.
FAQ
Q:RF 16 channel 1mhz-30mhz core power distributor with SMA connector can be modified?
A:Yes, our company can provide customized services according to customer requirements, such as size, appearance color, coating method, joint model, etc.
Q:Can the epidemic situation be serious enough to deliver goods abroad? Will the epidemic situation affect the delivery progress abroad?
A:It can be shipped abroad, but the receiving time may be extended in areas with serious epidemic.

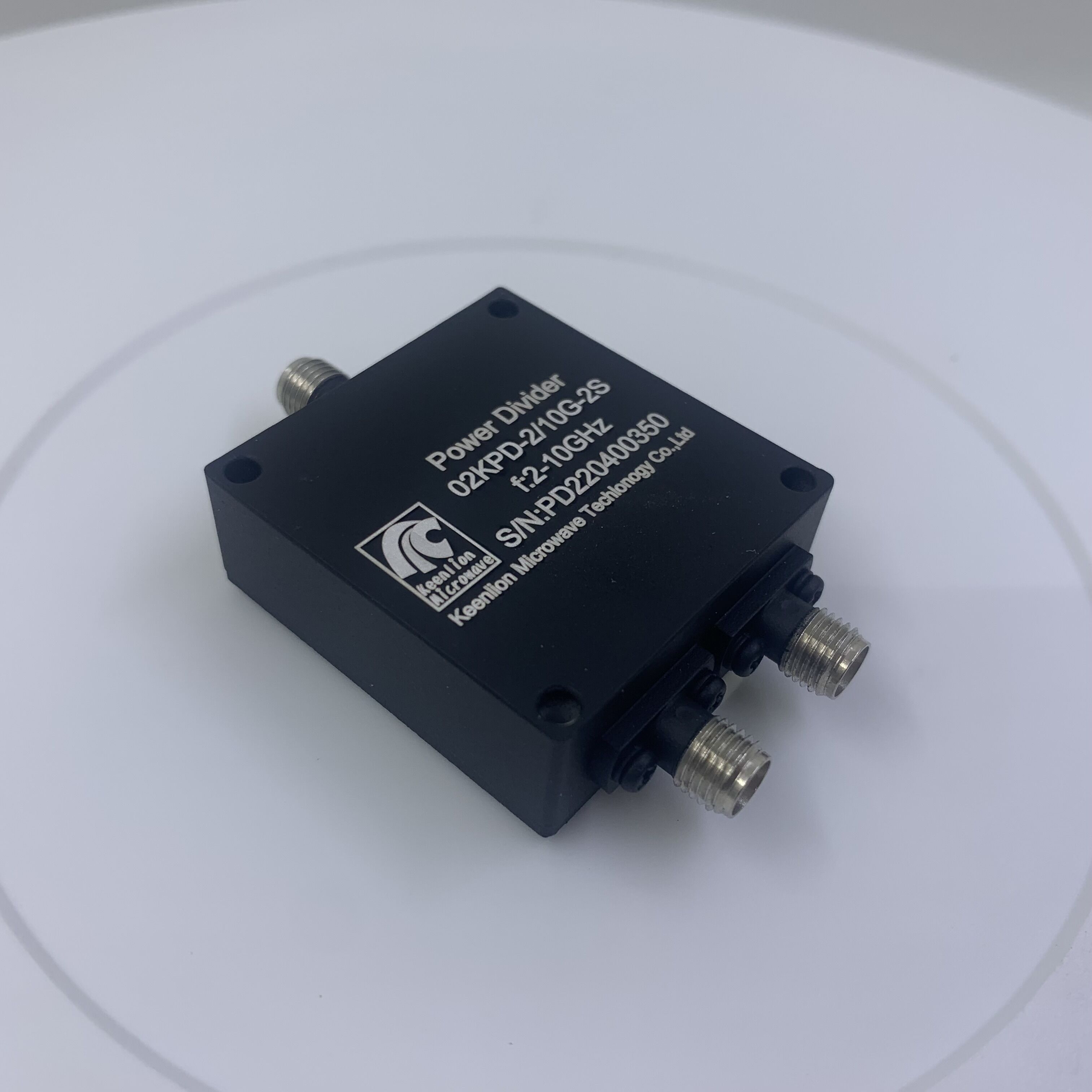

Product detail pictures:
