Product Overview
Sichuan Keenlion Microwave Technology 02KPD-18^40G-4S-1 splitter designed for wideband operation from 18 to 40 GHz supporting many applications requiring high performance across a wide frequency range including alll the LTE bands through WiMax and WiFi, as well as instrumentation and more. This models provides excellent power handling up to 10W (as a splitter) with low insertion loss, good isolation, and low phase and amplitude unbalance .
The high frequency broadband 18000-40000MHz Power Divider is a universal microwave/millimeter wave component, which is a kind of device that divides one input signal energy into four outputs equal energy; It can evenly distribute one signal into four outputs. Aluminum alloy shell, It can be customized
Key Features
|
Feature |
Advantages |
| Ultra-wideband, 18 to 40 GHz | Extremely wide frequency range supports many broadband applications in a single model. |
| Low insertion loss, 2.1 dB typ. at 20 GHz | The combination of 20W power handling and low insertion loss makes this model a suitable candidate for distributing signals while maintaining excellent transmission of signal power. |
| High isolation, 18 dB typ. at 20 GHz | Minimizes interference between ports. |
| High power handling:
• 16W as a splitter at 25°C • 1.5W as a combiner |
The 02KPD-18^40G-4S-1 is suitable for systems with a wide range of power requirements. |
| Low amplitude unbalance, 0.04 dB at 6 GHz | Produces nearly equal output signals, ideal for parallel path and multichannel systems. |
Main indicators
| Product Name | Power Divider |
| Frequency Range | 18-40 GHz |
| Insertion Loss | ≤ 2.1dB（Does not include theoretical loss 4.8dB） |
| VSWR | ≤1.8: 1 |
| Isolation | ≥18dB |
| Amplitude Balance | ≤±0.7dB |
| Phase Balance | ≤±8° |
| Impedance | 50 OHMS |
| Power Handling | 20 Watt |
| Port Connectors | 2.92-Female |
| Operating Temperature | ﹣40℃ to +80℃ |
Outline Drawing
Packaging & Delivery
Selling Units:Single item
Single package size: 5.3X4.8X2.2 cm
Single gross weight:0.3kg
Package Type:Export Carton Package
Lead Time：
| Quantity(Pieces) | 1 - 1 | 2 - 500 | >500 |
| Est. Time(days) | 15 | 40 | To be negotiated |
1.Company Name:Sichuan Keenlion Microwave Technology
2. Date of establishment:Sichuan Keenlion Microwave Technology Founded in 2004.Located in Chengdu, Sichuan Province, China.
3. Product classification:We provide high-performance mirrowave components and related services for microwave applications at home and abroad. The products are cost-effective, including various power distributors, directional couplers, filters, combiners, duplexers, customized passive components, isolators and circulators. Our products are specially designed for various extreme environments and temperatures. Specifications can be formulated according to customer requirements and are applicable to all standard and popular frequency bands with various bandwidths from DC to 50GHz.
4. Company certification:ROHS compliant and ISO9001:2015 ISO4001:2015 Certificate.
5. Process flow:Our company has complete production line (Design – cavity production – assembly – commissioning – testing – delivery), which can complete the products and deliver them to customers at the first time.
FAQ
Q:How much can your power divider frequency band do at present?
A:Our products are specially designed for various extreme environments and temperatures. Specifications can be formulated according to customer requirements and are applicable to all standard and popular frequency bands with various bandwidths from DC to 50GHz.
Q:Can the frequency band, size and appearance of your power divider be modified?
A:Yes, our company can provide customized services according to customer requirements, such as size, appearance color, coating method, etc.

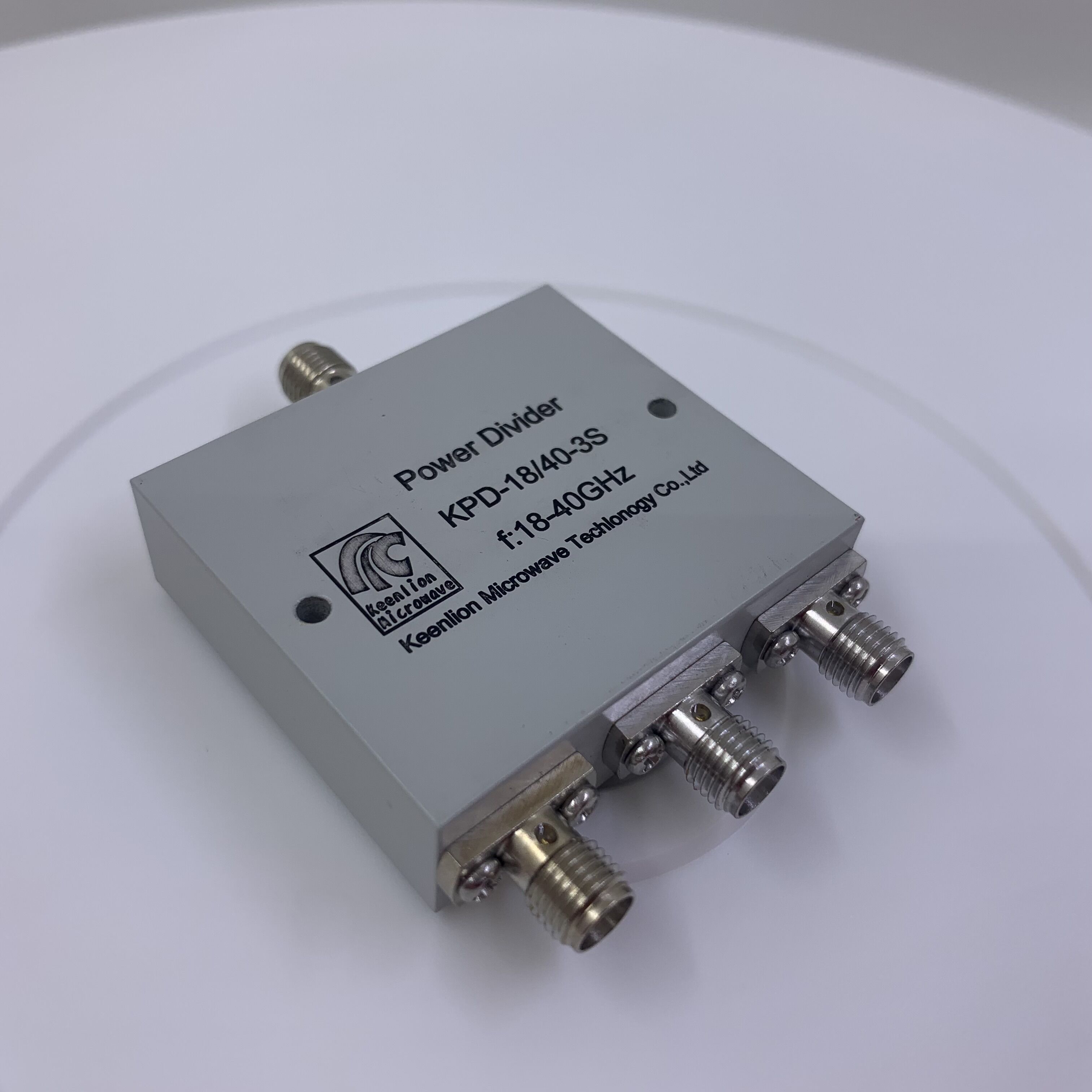

Product detail pictures:
