Customized 4500-5900MHz LC Filter Small Size RF Bandpass Filter
LC Filter offers 4500-5900MHz frequency bandwidth for precise filtering.LC Filter with high selectivity and rejection of unwanted signals.At Keenlion, we prioritize product quality and longevity. Our LC Filters are built to last and provide consistent performance over an extended period.In an era where equipment miniaturization is critical, our 4500 - 5900MHz LC Filter stands out with its compact design.

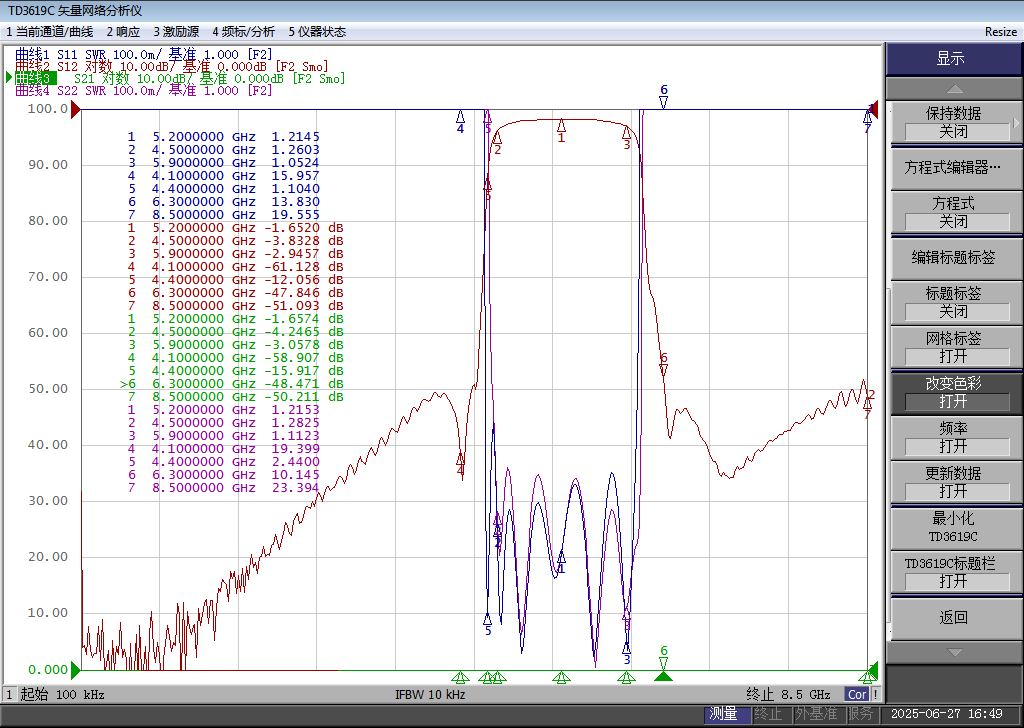

Main indicators
|
Product Name |
|
|
Center Frequency |
5200MHz |
|
Pass Band |
4500-5900MHz |
|
Bandwidth |
1400MHz |
|
Insertion Loss |
≤1.8dB |
|
VSWR |
≤1.5:1 |
|
Ripple |
≤2.5dB@4500-5900MHz |
|
Rejection |
≥10dB@4400MHz ≥45dBc@ DC -4100MHz ≥45dBc@6300-9500MHz |
|
Port Connector |
SMA-Female (with φ0.4 pin inside) SMP-JHD1 |
|
Operating Temperature |
-55℃~﹢85℃ |
|
Surface Finish |
Sliver |
|
Internal solder |
183℃ |
|
cap solder |
138℃ |

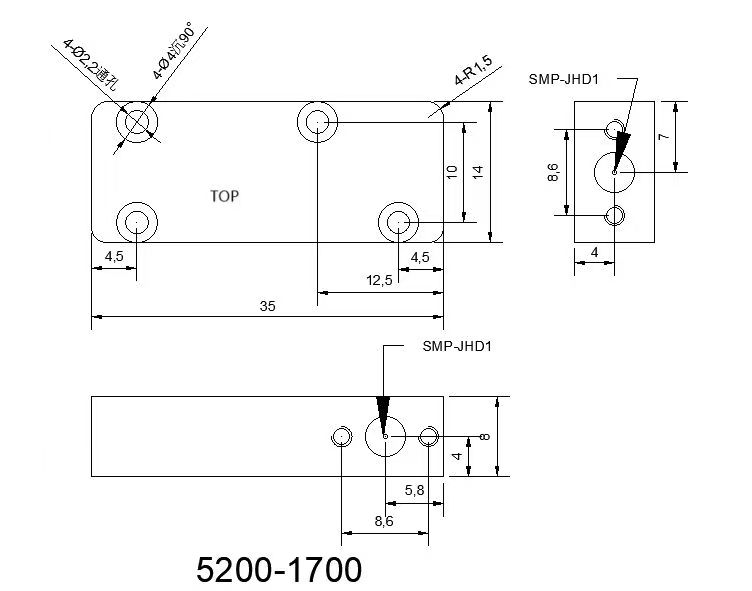

Outline Drawing
LC Filter Overview
Keenlion, a leading manufacturing factory, is excited to introduce the 4500-5900MHz LC Filter, a high - performance solution designed to meet the demands of modern communication systems. Our 4500-5900MHz LC Filter ensures clean signal transmission across 5G small cells, Wi-Fi 6E access points, and IoT gateways. By eliminating interference from adjacent bands, it maximizes data throughput and reduces error rates in high-density environments.
Company Advantages
Customization: Tailored solutions to meet specific client requirements.
High Resistance Band Rejection: Ensures minimal interference and optimal signal clarity.
Compact Design: Small form factor without compromising performance.
Samples Available: Experience the quality firsthand with our sample offerings.
High Quality: Rigorous testing and quality control ensure superior performance.
Competitive Factory Prices: Direct manufacturing ensures cost - effective solutions.
Professional After - Sales Support: Comprehensive support for seamless integration and long - term reliability.
