Product Overview
450-2700MHZ Resistance Box, High-quality aluminum alloy shell, prevention of RF interference, good shield function. The internal use of independent resistors in series, provides a test transition function in the entire system.IP65 waterproof design. PIM 3*30≥125dBC.
Applications
• testing platform
• Radio test platform
• Laboratory project
• Test system
Main indicators
| Product Name | Power Inserter |
| Frequency Range | 450MHz-2700MHz |
| Insertion Loss | ≤ 0.5dB |
| VSWR | IN:≤1.3:1 |
| waterproof level | IP65 |
| PIM&2*30dBm | ≤-125dBC |
| Impedance | 50 OHMS |
| Port Connectors | RF: N-Female/N-Male |
| Power Handling | 5 Watt |
| Operating Temperature | - 35℃ ~ + 55℃ |

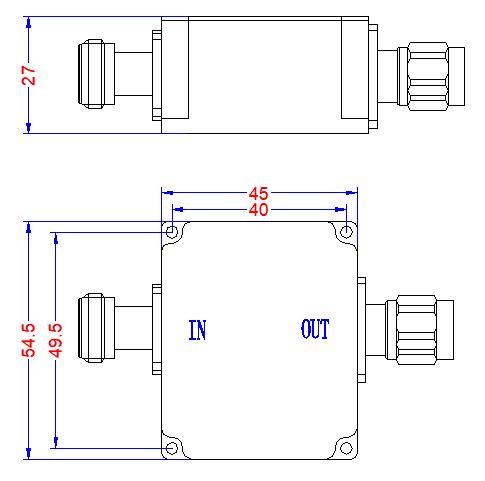

Outline Drawing
Packaging & Delivery
Selling Units: Single item
Single package size: 6×7×4 cm
Single gross weight: 0.28 kg
Package Type: Export Carton Package
Lead Time:
| Quantity(Pieces) | 1 - 1 | 2 - 500 | >500 |
| Est. Time(days) | 15 | 40 | To be negotiated |
