RF 703-2689.9MHZ 4 Band Combiner Quadplexer Quad Band with SMA Female Connector

Short Description:

The Big Deal

•Model Number:KCB-724.5/2654.95-01S

•Power Combiner Quadplexer Can Enhance RF Signal Integration

•RoHS Compliant

•Optimized Signal Quality

keenlion can provide customize RF Power Combiner, free samples, MOQ≥1

Any inquiries we are happy to reply, pls send your questions and orders.

Send email to us

Product Detail

Product Tags

Keenlion’s 703-2689.9MHZ 4 Band Combiner is a rugged, low-loss solution that merges four discrete RF blocks into one antenna feed without mutual interference.703-2689.9MHZ Powe Combiner combines four input signals.RF Combiner enhanced rf signal integration and optimized signal quality.4 Way Combiner Quadplexer Combiner can optimize Signal Quality.

Main Indicators

Center Frequency(MHz)	725.45	780.45	2534.95	2654.95
Frequency Range( MHz )	703-747.9	758-802.9	2500-2569.9	2620-2689.9
Insertion Loss（dB）	≤2.0
Ripple in Band（ dB ）	≤1.5:1
Return loss（ dB ）	≥18
Rejection（ dB ）	≥80@758-802.9MHz ≥80@2500-2569.9MHz ≥80@2620-2689.9MHz	≥80@703-747.9MHz ≥80@2500-2569.9MHz ≥80@2620-2689.9MHz	≥80@703-747.9MHz ≥80@758-802.9MHz ≥80@2620-2689.9MHz	≥80@703-747.9MHz ≥80@758-802.9MHz ≥80@2500-2569.9MHz
Power Handling	≥100W
Port Connectors	SMA-Female
Surface Finish	black paint

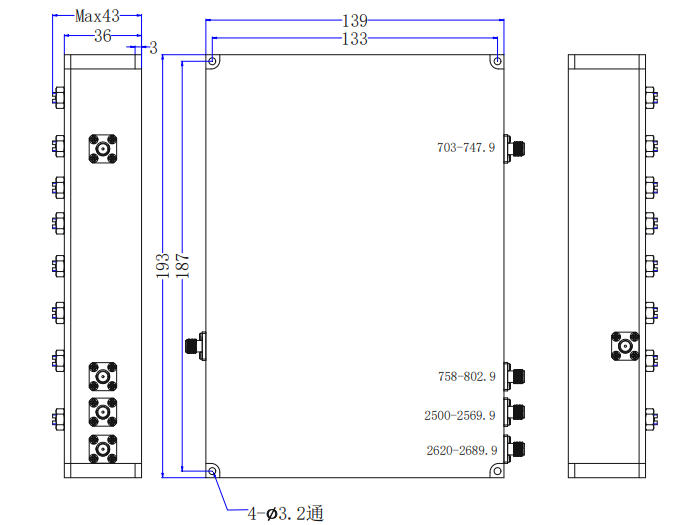

Outline Drawing

Introduction

Keenlion’s 703-2689.9MHZ 4 Band Combiner is a rugged, low-loss solution that merges four discrete RF blocks into one antenna feed without mutual interference. Designed for macro-cell, DAS and broadcast head-ends, this 703-2689.9MHZ 4 Band Combiner sets a new benchmark for multi-service networks.

Technical Performance

• Frequency bands:703-747.9 MHz, 758-802.9MHz, 2500-2569.9MHz, 2620-2689.9MHz
• Insertion loss ≤ 2.0 dB per channel
• Ripple in Band ≤1.5:1 between ports
•Return Loss ≥18 across all bands
• Power handling 100W

Factory Advantages

20-year cavity-combiner experience — thousands of field-proven units
Full CNC in-house machining — seven-day lead time standard
Free samples dispatched within 48 hours for real-world validation
Tailor-made bracket, connector and band-split options at no MOQ
Competitive pricing without middle-men, backed by lifetime tech support

Applications
Deploy the 703-2689.9MHZ 4 Band Combiner in 5G/4G base-station sharing, public-safety DAS, or broadcast plus cellular co-location projects. Its compact 1U 19-inch rack housing saves rack space while simplifying RF plumbing.

Conclusion
For engineers seeking a robust, low-loss path to combine 700 MHz, 850 MHz, 1800 MHz and 2.6 GHz services, Keenlion’s 703-2689.9MHZ 4 Band Combiner delivers proven performance straight from our factory floor. Request datasheets and samples today.
