wholesaler 68-72MHZ Customized LC Filter Small Size Band Pass Filter
The LC Filter offers 4mhz narrow frequency bandwidth for precise filtering,can pass 68-72MHz.Our 68-72MHz LC Filter features a compact design, perfect for space-constrained setups. With an insertion loss of ≤5.0 dB and a VSWR of ≤1.5:1, it ensures minimal signal attenuation while maintaining excellent passband flatness.
Main Indicators
|
Product Name |
||
|
Number |
Items |
Specifications |
|
1 |
Centre Frequency |
70 MHz |
|
2 |
Passband |
68-72 MHz |
|
3 |
Insertion Loss At CF |
≤5dB |
|
4 |
Pass Band Ripple |
≤1dB |
|
5 |
VSWR |
≤1.5:1 |
|
6 |
Rejection |
≤－40dB @DC-64 MHz ≤－40dB @ 76-100 MHz |
|
7 |
Impedance |
50 Ohms |
|
8 |
Input & Output Termination |
SMA (Female) |
|
9 |
Temperature Operating Range |
-20℃ to +60℃ |
|
10 |
Material |
Aluminum |
|
11 |
Surface Treatment |
Silver |
|
12 |
Internal Solder |
183℃ |
|
13 |
Sealing Solder |
138℃ |
|
14 |
Size |
As Below ↓（±0.1mm） Unit/mm |

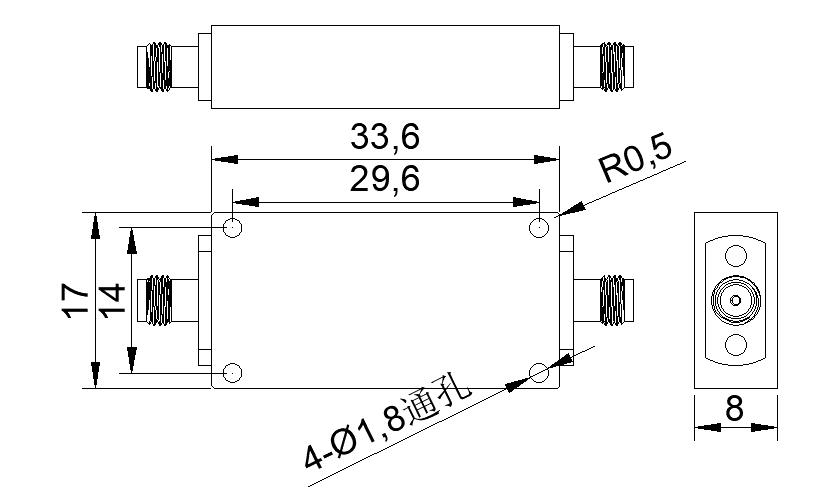

Outline Drawing
Product & Company Highlights
Precision Frequency Control: This filters signals precisely in the 68-72 MHz frequency range, and maintains the output signal clean for delicate applications.
Superior Signal Integrity: The signal passes a minimum amount of loss through the device, and it suppresses undesirable noise and interference.
Robust Construction: It is enclosed in a strong metal box to function well in severe environments.
Customization Ready:Personalisation Being a factory, Keenlion can adjust the center frequency, the bandwidth, or the connectors according to your requirements.
Direct Manufacturing Advantage Value: Take advantage of low prices and uniform quality assurance by engaging in direct dealings with the factory.
Professional Technical Assistance: Get expert help starting from specification all the way to integration, along with dependable after-sales support.
