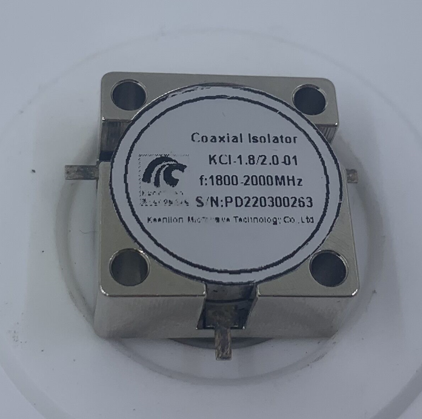

1800-2000MHZ UHF Band RF Coaxial Isolator

1800-2000MHZ UHF Band RF Coaxial Isolator

Short Description:

Model Number:KCI-1.8/2.0-01

Highly Recommended,Classic design,Top quality.

the specific Frequency Range

• With high reliability, stable and reliable working performance 100% brand new and high quality


Product Detail

Product Tags

What is an isolator?

RF isolator is a dual port ferromagnetic passive device, which is used to protect other RF components from being damaged by too strong signal reflection. Isolators are common in laboratory applications and can separate the equipment under test (DUT) from sensitive signal sources.

10

The difference between isolator and circulator

The circulator is a multi port device that transmits the incident wave entering any port into the next port according to the direction determined by the static bias magnetic field. The prominent feature is the unidirectional transmission of energy, which controls the transmission of electromagnetic waves along a circular direction.

For example, in the circulator in the figure below, the signal can only be from port 1 to port 2, from port 2 to port 3, and from port 3 to port 1, and other paths are blocked (high isolation)

The isolator is generally based on the structure of the circulator. The only difference is that the isolator is usually a two port device, which connects the three ports of the circulator to the matching load or detection circuit. Thus, such a function is formed: the signal can only go from port 1 to port 2, but can not return to port 1 from port 2, that is, one-way continuity is realized.

If the 3-port is connected to the detector, the mismatch degree of the terminal device terminated by the 2-port can also be realized, and the standing wave monitoring function can be realized.

Product application

Laboratory test (ultra bandwidth)

Satellite communication

Wireless system

Main indicators

ITEM

UNIT

SPECIFICATION

NOTE

Frequency Range

MHz

1800-2000

Direction of circulation

Operating Temperature

-40~+85

Insertion Loss

dB max

0.40

Room Temp(+25 ℃±10℃)

dB max

0.45

Over Temp(-40℃±85℃)

Isolation

dB min

20

Room Temp(+25 ℃±10℃)

dB min

18

Over Temp(-40℃±85℃)

Return loss

dB max

20

Room Temp(+25 ℃±10℃)

dB max

18

Over Temp(-40℃±85℃)

Forwad power

W

100

Reverse Power

W

50

Impedance

Ω

50

Configuration

Ø

As beloe(tolerances:±0.20mm)

Outline Drawing

9

 Packaging & Delivery

 Selling Units:Single item

 Single package size: 4X3.4X3.2 cm

 Single gross weight:0.2 kg

 Package Type:Export Carton Package

 Lead Time:

Quantity(Pieces) 1 - 1 2 - 500 >500
Est. Time(days) 15 40 To be negotiated

Company profile:

1.Company Name:Sichuan Keenlion Microwave Technology

2. Date of establishment:Sichuan Keenlion Microwave Technology Founded in 2004.Located in Chengdu, Sichuan Province, China.

3. Product classification:We provide high-performance mirrowave components and related services for microwave applications at home and abroad. The products are cost-effective, including various power distributors, directional couplers, filters, combiners, duplexers, customized passive components, isolators and circulators. Our products are specially designed for various extreme environments and temperatures. Specifications can be formulated according to customer requirements and are applicable to all standard and popular frequency bands with various bandwidths from DC to 50GHz.

4.Product assembly process:The assembly process shall be in strict accordance with the assembly requirements to meet the requirements of light before heavy, small before large, riveting before installation, installation before welding, inner before outer, lower before upper, flat before high, and vulnerable parts before installation. The previous process shall not affect the subsequent process, and the subsequent process shall not change the installation requirements of the previous process.

5.Quality control: our company strictly controls all indicators in accordance with the indicators provided by customers. After commissioning, it is tested by professional inspectors. After all indicators are tested to be qualified, they are packaged and sent to customers.
