1920-1980MHz/2110-2170MHz Microwave Cavity Duplexer Diplexer
The 1920-1980MHz/2110-2170MHz Cavity Diplexer is engineered to operate with extreme precision within these specific frequency bands.At Keenlion, we provide professional pre - and post - sales support.
Advanced Cavity Diplexer for 1920-1980MHz/2110-2170MHz frequency bands
Exceptional performance: ≤1dB insertion loss, ≥60dB channel isolation
Compact aluminum housing with black paint surface treatment
SMA female connectors for reliable connectivity
Competitive factory-direct pricing
Free samples available for qualified customers
Professional after-sales technical support
Custom design capabilities
Fast 7-day sample delivery
20 years of manufacturing expertise
Cavity Duplexer Main Indicators
|
Number |
Items |
Specifications |
|
|
1 |
Rx |
Tx |
|
|
2 |
Centre Frequency |
1950MHz |
2140MHz |
|
3 |
Passband |
1920-1980MHz |
2110-2170MHz |
|
4 |
Insertion Loss |
≤1dB |
≤1dB |
|
5 |
VSWR |
≤1.3:1 |
≤1.3:1 |
|
6 |
Rejection |
≥60dB@2110-2170 MHz |
≥60dB@1920-1980 MHz |
|
7 |
Impedance |
50 Ohms |
|
|
8 |
Input & Output Termination |
SMA Female |
|
|
9 |
Operating Power |
10W |
|
|
10 |
Operating Temperature |
-20℃ To +65℃ |
|
|
11 |
Material |
Aluminum |
|
|
12 |
Surface Treatment |
Black Paint |
|
|
13 |
Size |
As below ↓（±0.5mm） Unit/mm |
|

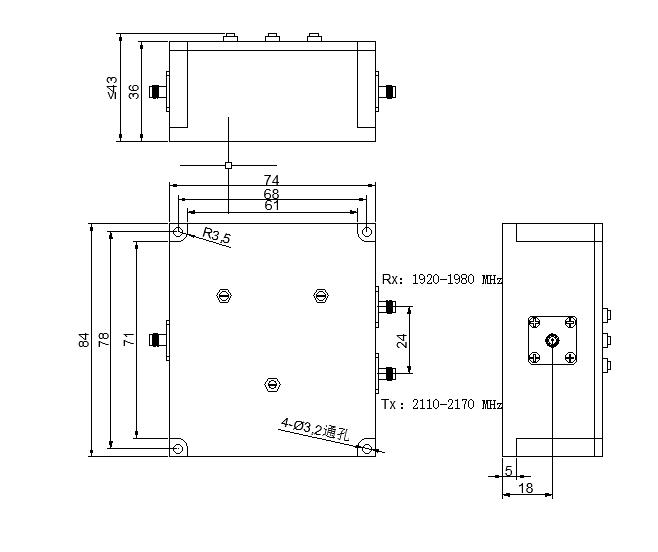

Outline Drawing
Precise Electrical Response
Our 1920-1980MHz / 2110-2170MHz Cavity Diplexer uses quarter-wave coaxial cavities tuned to 1950 MHz (Rx) and 2140 MHz (Tx). Each Cavity Diplexer is swept on a 20 GHz VNA to guarantee insertion loss ≤1 dB and VSWR ≤1.3:1 on both paths, while rejection ≥60 dB across the opposite band ensures the Cavity Diplexer eliminates Rx/Tx self-quieting in LTE-FDD, 5G-NR or private-network radios.
Rugged Mechanical Build
The 1920-1980MHz / 2110-2170MHz Cavity Diplexer is milled from one-piece aluminium, black-paint finished and stable performance from -20 °C to +65 °C. SMA-F connectors are torque-sealed; the Cavity Diplexer can be wall-mounted with two M3 holes or supplied with custom brackets.
Factory Backbone – Why Keenlion
20-year Chengdu plant machines, plates, tunes and tests every Cavity Diplexer under one roof
7-day prototype lead, 21-day volume schedule
Insertion loss, VSWR and rejection verified on signed VNA plot
Competitive factory prices with no distributor margin
Free samples shipped in 48 hours
Professional after-sales support for life of the Cavity Diplexer
