Advanced Cavity Diplexer for 2025MHz-2110MHz/2210MHz-2300MHz frequency bands

Cavity Diplexer splits 2025MHz-2110MHz (Rx) and 2210MHz-2300MHz (Tx) with ≤0.8 dB insertion loss each side

The 2025MHz-2110MHz/2210MHz-2300MHz Cavity Diplexer we provide allows the easy separation and combination of RF signals. We are a passive factory that manufactures according to the required specifications.

Cavity Duplexer Main Indicators

Number	Items	Specifications
1	Cavity Diplexer	RX	TX
2	Centre Frequency	2067.5MHz	2255MHz
3	Passband	2025MHz-2110MHz	2210MHz-2300MHz
4	Insertion Loss	≤0.8dB	≤0.8dB
5	Ripple	≤0.6dB	≤0.6dB
6	VSWR	≤1.3:1	≤1.3:1
7	Rejection	2210-2300MHz≥88dBc 2482-2500MHz≥50dBc 1610-1623MHz≥50dBc 1559-1602MHz≥40dBc 1207-1278MHz≥45dBc	2025-2110MHz≥88dBc 2482-2500MHz≥50dBc 1610-1623MHz≥50dBc 1559-1602MHz≥40dBc 1207-1278MHz≥45dBc
8	Second and third harmonic	Second harmonic≥70dBc Third harmonic≥50dBc
9	Impedance	50Ω
10	Port Connectors	Input(ANT)N-Female ， Output(TX RX)N-Male
11	Operating Power	400W(CW)
12	Operating Temperature	-45℃ To +85℃
13	Material	Aluminum
14	Surface Finish	Original
15	Configuration	As below ↓（±0.5mm） Unit/mm

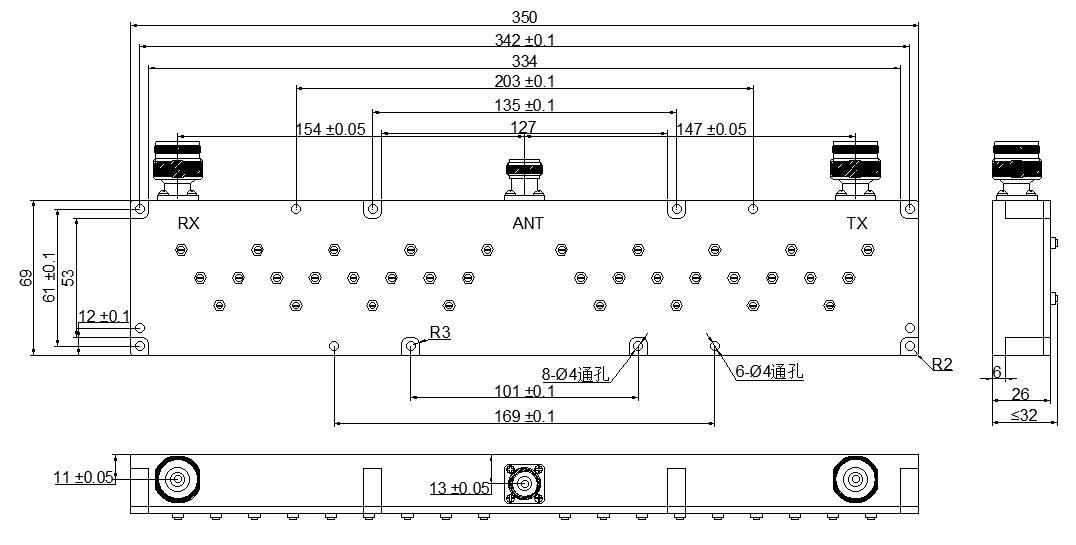

Outline Drawing

Superior Cavity Diplexer Design for Challenging Environments

Every cavity diplexer we produce is subjected to intense tuning to ensure that the 2025MHz-2110MHz and 2210MHz-2300MHz bands are possessed in total isolation. The Cavity Diplexer Keenlion 2025 MHz-2110 MHz/2210 MHz-2300 MHz is the result of the extensive experience of the engineering team in passive element design. This cavity diplexer is a combination of finely machined resonant cavities, which provide high Q value and hence low signal loss in the transmission bands, and sharp cut channels between the channels. The physical distance provided by cavity resonator technology is much greater than the one offered by planar filter designs which is why this cavity diplexer is the product of choice in base stations, repeater systems, and front-end sensitive receivers.

Exceptional Electrical Performance You Can Rely On

This cavity diplexer performs perfectly as it preserves similar electrical characteristics at various temperatures over an extended period of time. The cavity diplexer passes power to the antenna and signals to the LNA on two frequency bands with a normal insertion loss of less than 0.8 dB.
Our Cavity Diplexer of 2025MHz-2110MHz/2210MHz-2300MHz is a highly engineered product that provides superior signal management performance. The Cavity Diplexer offers minimum insertion loss along with high isolation, which allows the separation of signals between 2025-2110MHz and 2210-2300MHz bands without any interference, which is critical to RF systems. As a production plant, we apply the premium quality materials in the production of the Cavity Diplexer, which will ensure the longevity of the product even under Severe working conditions.
