High Precision 3200-3700MHz Cavity Filter | Customizable by Keenlion Factory
With our professional manufacturing factory, we at Keenlion supply quality 3200-3700MHz Cavity Filters with complete customisation options. Our 3200-3700MHz Cavity Filter is manufactured using the best quality aluminium materials, performing to high standards set by the industry, with low insertion loss (≤1.0dB); high interference rejection (up to 85dB); steady signal transmission; and carrying 50W of power capacity reliably. This filter comes with an SMA female connector, a spray-painted finish, and a ±0.5mm dimensional tolerance. This filter is also durable, corrosion-resistant, and precise in its dimensions.
Main Indicators
|
Product Name |
|
|
Passband |
3200~3700 MHz |
|
Insertion Loss in Passbands |
≤1.0 dB |
|
VSWR |
≤1.4:1 |
|
Rejection |
≤85dB @DC-2900 MHz ≤85dB @4000 MHz-4500MHz ≤60dB @4500 MHz-8500MHz |
|
Impedance |
50Ω |
|
Material |
Aluminum |
|
Connectors |
SMA-Female |
|
Power |
50W |
|
Surface Treatment |
Spray Paint |
|
Dimension Tolerance |
As Below↓ (±0.5mm） |

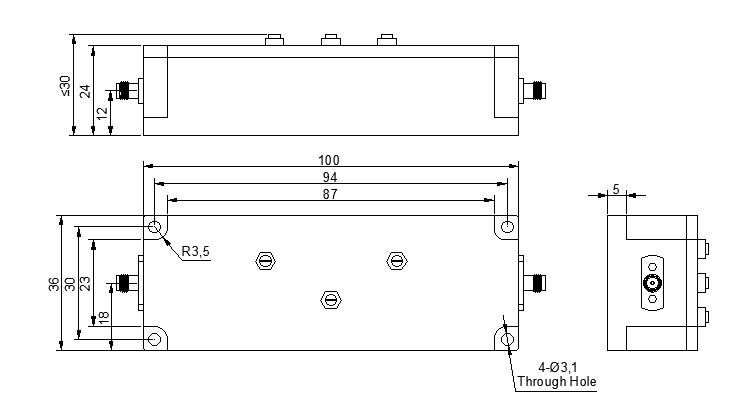

Outline Drawing
3200-3700MHz Cavity Filter Product Details
3200-3700MHz Cavity Filters have a passband width of 3200-3700MHz. within the passband, the Insertion Loss is ≤1.0dB; the VSWR is ≤1.4:1. The 3200-3700MHz Cavity Filter produces high rejection (≤85dB @ DC-2900MHz), (≤85dB @ 4000MHz-4500MHz), (≤60dB @ 4500MHz-8500MHz) and eliminates the possibility of interference from most sources. The 3200-3700MHz Cavity Filter is available in a 50Ω impedance rating with 50W power, an SMA Female connector, ±0.5mm tolerance in outer dimensions for durability and stability. Keenlion is manufacturer of 3200-3700MHz Cavity Filter and we offer complete customization of all 3200-3700MHz Cavity Filter parameters to meet your exact application requirements.
