2000-2200MHz Cavity Filter – Factory Direct with Custom Tuning
Cavity Filter passes up 2000 - 2200MHz range of frequency. also Cavity Filter with high selectivity and rejection of unwanted signals.at Keenlion, we prioritize product quality and longevity.Keenlion custom-makes every filter to order in our factory providing low insertion loss, sharp band-rejection products that are unique to your application. No cheap copy-parts – just real performance.
Main Indicators
|
Product Name |
|
|
Passband |
2000~2200 MHz |
|
Insertion Loss in Passbands |
≤1.0 dB |
|
VSWR |
≤1.4:1 |
|
Rejection |
≤95dB @DC-1700 MHz ≤95dB @2500 MHz-2900MHz ≤50dB @2900 MHz-6000MHz |
|
Impedance |
50Ω |
|
Material |
Aluminum |
|
Connectors |
SMA-Female |
|
Power |
50W |
|
Surface Treatment |
Spray Paint |
|
Dimension Tolerance |
As Below↓ (±0.5mm） |

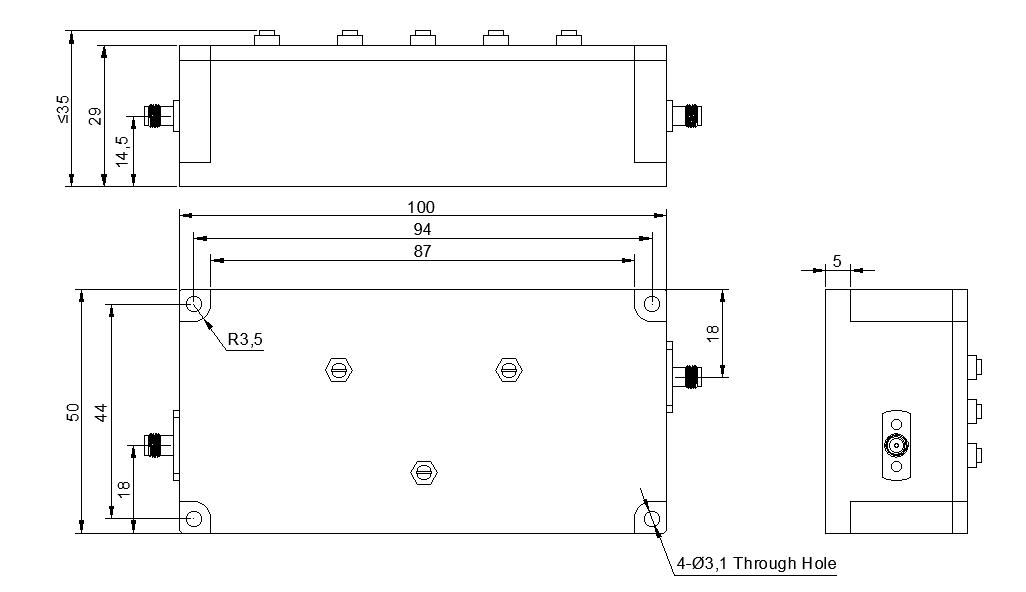

Outline Drawing
Designed for clean through signal (2000-2200 MHz).
You want a 2000 - 2200MHz Cavity Filter that passes your frequencies of interest. We control every part of the building process in our facility. The 2000-2200MHz Cavity Filter provides an efficient pass band with a ≤1.0dB Insertion Loss & ≤1.4:1 VSWR, and removes unwanted signals from your application. The 2000-2200MHz Cavity Filter will reject >95dB from DC to 1700MHz and again from 2500MHz to 2900MHz, which gives you keeps noise out of your communications system and allows for more dependable links.
Customization Without Surprises – Because You Are Unique
There is a certain place and connector requirement for each system. Therefore, Keenlion offers you the opportunity to have your 2000-2200 MHz Cavity Filter customized to the appropriate size or type of connector, surface finish or rejection curve instead of applying an off-the-shelf option. We manufacture our cavity filters utilizing aluminium housings and SMA-female connectors as our standard base options. You will have full control over the design of your unit from start to finish. We, being an authentic manufacturer, will adjust each filter from 2000‑2200MHz using our own testing equipment, prior to shipping to you.
