China Manufacturer Price 2303.5-2321.5Hz/2373.5-2391.5Hz Customized RF Cavity Filter Band Pass Filter Manufacture and Factory

Manufacturer Price 2303.5-2321.5Hz/2373.5-2391.5Hz Customized RF Cavity Filter Band Pass Filter

Short Description:

The Big Deal

• Cavity Filter Passes 2303.5-2321.5Hz/2373.5-2391.5Hz range of frequencies

•Cavity Filter with compact and lightweight design

•Long operational lifespan

keenlion can provide customize Cavity Filter, free samples, MOQ≥1

Any inquiries we are happy to reply, pls send your questions and orders.

Send email to us

Product Detail

Product Tags

Keenlion designs and manufactures high-performance RF components like the 2312.5MHz/2382.5MHz Cavity Filter, essential for eliminating interference in dense signal environments. These filters deliver exceptional out-of-band rejection for applications including private LTE networks, industrial IoT systems, and 5G infrastructure. As a direct factory, Keenlion ensures rigorous quality control while enabling rapid customization to match exact operational requirements.

Main Indicators KBF-2312.5/18-01N

Product Name	Cavity Filter
Center Frequency	2312.5MHz
Pass Band	2303.5-2321.5Hz
Bandwidth	18MHz
Insertion Loss	≤2.0dB
VSWR	≤1.3:1
Rejection	≥30dB@2277.5MHz ≥30dB@2347.5MHz
Port Connector	N-Female
Power	20W
Surface Finish	Painted black
Dimension Tolerance	±0.5mm

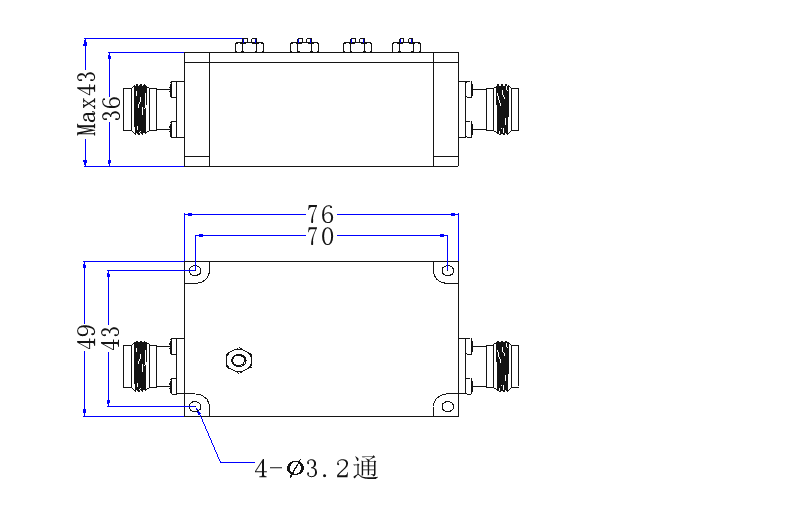

Outline Drawing

Main Indicators KBF-2382.5/18-01N

Product Name	Cavity Filter
Center Frequency	2382.5MHz
Pass Band	2373.5-2391.5Hz
Bandwidth	18MHz
Insertion Loss	≤2.0dB
VSWR	≤1.3:1
Rejection	≥30dB@2347.5MHz ≥30dB@2417.5MHz
Port Connector	N-Female
Power	20W
Surface Finish	Painted black
Dimension Tolerance	±0.5mm

Outline Drawing

High - Performance Signal Processing in Specific Frequency Bands

Keenlion’s 2312.5MHz/2382.5MHz Cavity Filter is a cutting-edge solution designed for communication systems operating in these specific frequency ranges. This advanced filter provides exceptional signal processing capabilities, ensuring optimal performance in applications such as land mobile radio (LMR) systems, amateur radio, and other specialized communication networks. The cavity filter design ensures high selectivity and excellent signal isolation, making it ideal for environments where signal purity and reliability are critical.

Customized Manufacturing to Meet Specific Requirements

As a leading manufacturing factory, Keenlion offers customized 2312.5MHz/2382.5MHz Cavity Filters based on specific customer specifications. Our efficient production process ensures that your tailored filter is manufactured to the highest standards. By communicating directly with Keenlion, you can provide detailed requirements, and our team will deliver a solution that fits seamlessly into your communication system. This direct collaboration allows for better control over quality and production costs, ensuring that you receive a product that meets your exact expectations.

Stringent Quality Control and Timely Delivery

Quality is paramount at Keenlion. Our 2312.5MHz/2382.5MHz Cavity Filters undergo rigorous testing to guarantee superior performance and reliability. We understand the importance of timely delivery in the fast - paced communication industry. Therefore, we commit to meeting your deadlines without compromising on quality. You can rely on Keenlion to provide you with high - performance components when you need them.
Professional After - Sales Support and Services
