10-20GHz 4 Way Power Splitter or Power Divider
Video
The Big Deal
• Wideband, 10 to 20 GHz
• High power, up to 20W as a splitter
• Low insertion loss, ≤2.0dB
• Low unbalance, 0.5dB, 5˚
• High isolation, up to 16 dB
Product Overview
1.VSWR IN:≤1.7: 1 OUT:≤1.5：1,across a wideband from 10000 to 20000 MHz
2.Low RF Insertion Loss ≤2.0dB and excellent return loss performance
3 .It can evenly distribute one signal into 4 way outputs,Available with SMA-Female Connectors
4.Highly Recommended,Classic design,Top quality.
5.It is space-qualified and has undergone additional reliability and quality assurance inspections during all phases of assembly, electrical evaluation, and shock/vibration testing.
6.Applications: mobile communications, satellite radar, electronic countermeasures, test and measurement and other ultra-wideband fields
7.Model Number:02KPD-10^20G-4S
Key Features
| Feature | Advantages |
| Wideband,10000 to 20000 MHz | One power splitter can be used in all the LTE bands through WiMAX and WiFi, saving component count. Also ideal for wideband applications such as military and instrumentation. |
| Excellent power handling
• 20W as a splitter •20W internal dissipation as a combiner |
In power combiner applications, half the power is dissipated internally. it is designed to handle 20W internal dissipation as a combiner allowing reliable operation without excessive temperature rise. |
| Unpackaged Die | Enables user to integrate it directly into hybrids. |
Main indicators
| Frequency Range | 10-20 GHz |
| Insertion Loss | ≤2.0dB |
| Amplitude Balance | ≤0.5dB |
| Phase Balance | ≤±5° |
| VSWR | IN:≤1.7: 1 OUT:≤1.5：1 |
| Isolation | ≥16dB |
| Impedance | 50 OHMS |
| Power Handling | 20Watt |
| Port Connectors | SMA-Female |
| Operating Temperature | -20℃to+55℃ |

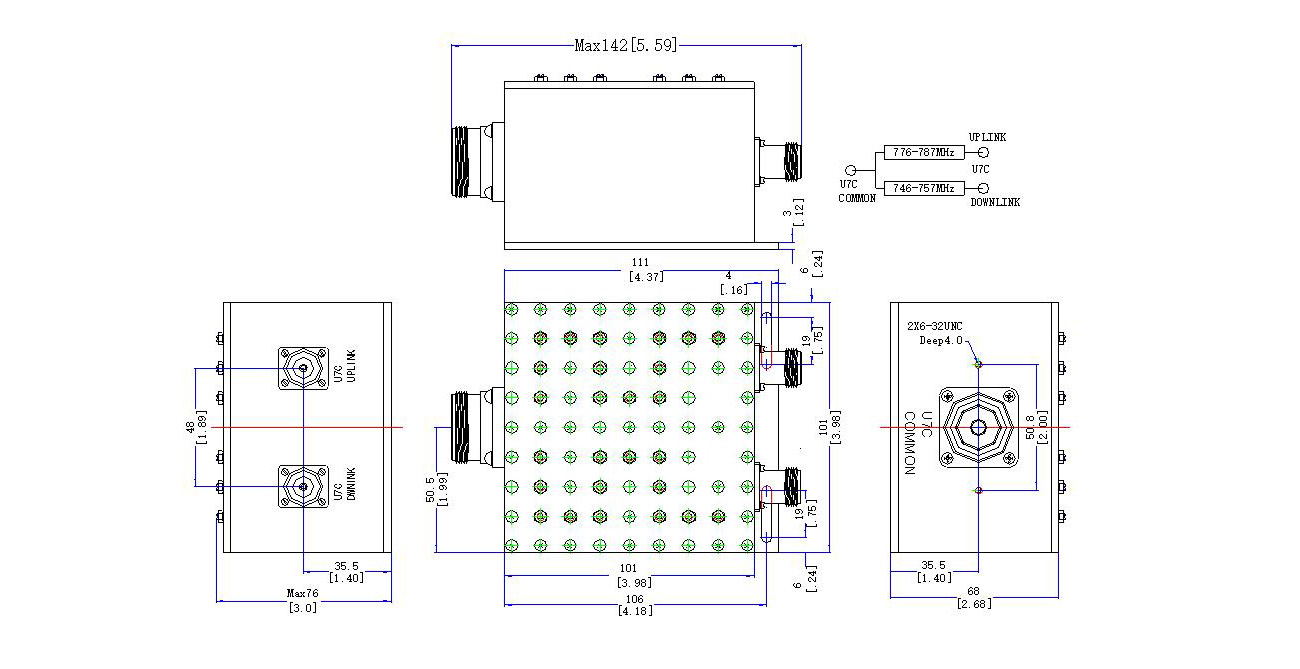

Outline Drawing
Packaging & Delivery
Selling Units:Single item
Single package size: 10X9X5cm
Single gross weight:1kg
Package Type:Export Carton Package
Lead Time：
| Quantity(Pieces) | 1 - 1 | 2 - 500 | >500 |
| Est. Time(days) | 15 | 40 | To be negotiated |
Company Profile
Sichuan Keenlion Microwave Technology is a designer and manufacturer of high performance RF and Microwave components and subsystems. Since its inception over two decades ago, the company has continued its tradition of supplying high quality products into a wide range of industries such as wireless/satellite communications, medical science, surveillance/security, industrial automation, military/defense sector, space exploration, aviation, biometrics, broadcasting, and other such industries.Founded in 2004, Sichuan Keenlion Microwave Technology, Inc. is a leading supplier of high power broadband passive components to include, RFPower Dividers, Directional Couplers, Filters, Combiners, Duplexer, Custom passive components，Isolators, Circulatiors to customers worldwide.Instead of designing around catalog items, products are engineered to meet and exceed customer requirements and expectations. The company is headquartered in Sichuan Chengdu ,China.Absolute commitment to demanding quality standards, continuous innovation, rapid response, value pricing, and top-notch customer service have made Sichuan Keenlion Microwave Technology the preferred supplier to over 20,000 customers worldwide.
FAQ
Q.Affordable Price
A.We offer much lower price than our competitors for the same quality, which assures your profit.
Q.Welcome OEM & ODM
A.We have a wealth of experience in product customization, from packaging, product appearance, to customer LOGO, we can provide customized services
Q.How can I use the power splitter?
A.Power splitter/divider is a kind of all input signal energy will be divided into two or more signals energy output devices.It can distribute power through cable, suitable for mobile phone signal amplifier, wifi amplifier and other products. If you have any questions, please feel free to contact us.

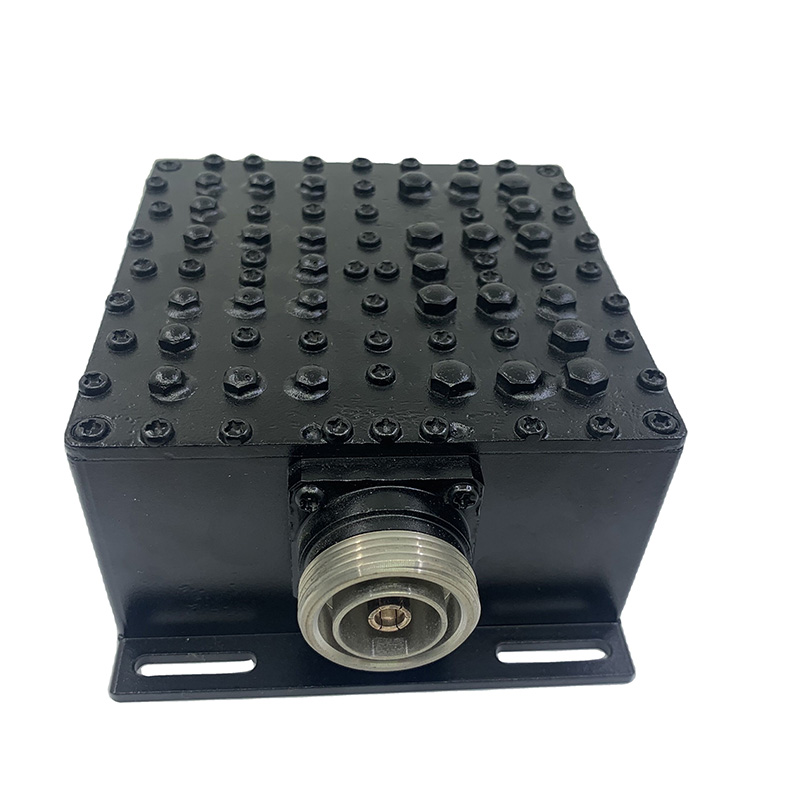

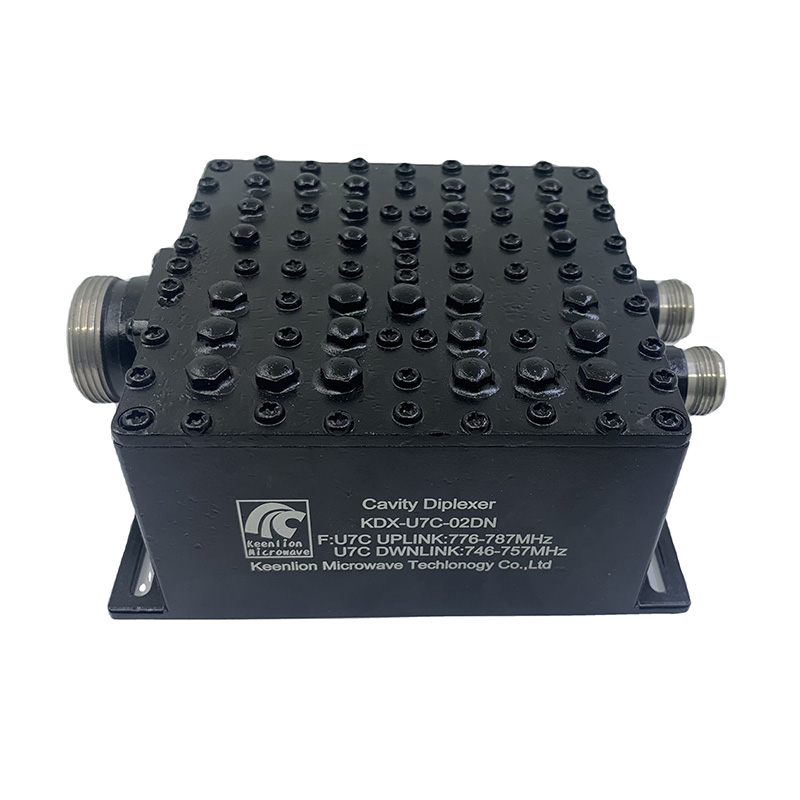

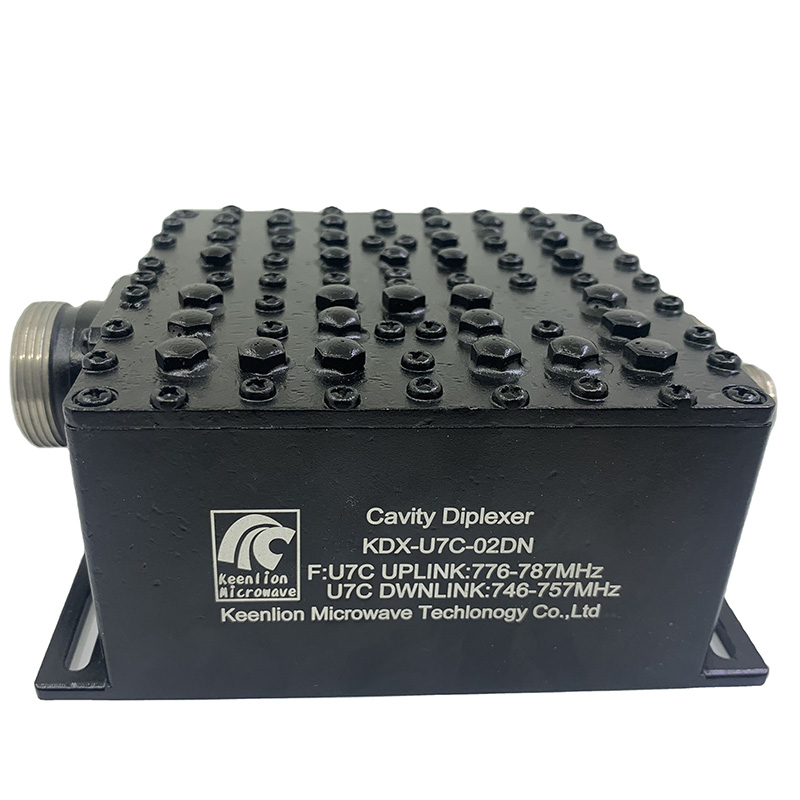

The 776-787 MHz/776-787 MHz Cavity duplexer is a universal microwave/millimeter wave component,Its function is to isolate the transmitting and receiving signals to ensure that both receiving and transmitting can work normally at the same time. It is composed of two sets of filters with different frequencies to prevent the signal transmitted by the machine from transmitting to the receiver. The general Duplexer is composed of spiral vibration cavity. Due to its high working frequency and great influence of distribution parameters, it is often made into a sealed sleeve, each signal feeder uses coaxial cable cavity with good shielding effect and requires a certain degree of smoothness. In order to facilitate heat dissipation, the appearance is usually black. Duplexer is used for mobile communication and working as an unattended transfer station in the field.
|
Parametric |
U7C UPLINK |
U7C DWNLINK |
|
Passband |
776～787 MHz |
746～757 MHz |
|
Insertion Loss |
≤2.5dB |
≤2.5dB |
|
Ripple |
≤1.0dB @ Room Temperature |
|
|
≤1.5dB @ 0℃～50℃ Temperature Variation |
||
|
VSWR |
≤1.3 |
≤1.3 |
|
Rejection |
≥70dB @746～757 MHz |
≥70dB @776～787MHz |
|
Isolation |
≥70dB @746～787MHz |
|
|
PIM |
≤-150dBc@2*43dBm |
|
|
Power |
50W |
|
|
Temp. Range |
0～50 Degrees C |
|
|
Finish |
Black |
|
|
Connectors |
DIN-Female; N-Female |
|
Sichuan Keenlion Microwave Technology Founded in 2004, Sichuan Keenlion Mircrowave techenology CO., Ltd. is the leading manufacturer of the Passive Mircrowave components in Sichuan Chengdu, China.
We are working together with our customers for high performance mircrowave components and relative services in and out of China. Avallable in all kinds of Power Dividers, Directional Couplers, Filters, Combiners, Duplexer, Custom passive components, Isolators, Circulatiors. Our products are specitically designed for use in varied environmental and temperature extremes, When covers all standard and popular bands commonly used throughout the market from DC to50GHz in varying bandwidths.
1. ROHS compliant and ISO9001:2015 ISO4001:2015 Certificate
2. Various Size & Wide Frequency
3. Advanced manufacture and surface plating
4. Specifications can be made according to the customers' requirments
5. Suitable for the indoor coverage system of cellular mobile communication
Selling Units: Single item
Single package size: 17×9.2×5.2 cm
Single gross weight: 1.5.000 kg
Package Type: Export Carton Package
Lead Time:
| Quantity(Pieces) | 1 - 1 | 2 - 500 | >500 |
| Est. Time(days) | 15 | 40 | To be negotiated |
