Customizable 1780-1980MHz Cavity Filter | Mass-Produced Factory
Keenlion manufactures many 1780-1980MHz Cavity Filter products, but also mass produce custom 1780-1980MHz Cavity Filters. The 1780-1980MHz Cavity Filter is a stable, communications RF device. Features include high rejection rates (95dB), low insertion loss levels (equal to or less than 1.0dB), clear signal transmission, and high interference resistance in commercial applications.
Main Indicators
|
Product Name |
|
|
Passband |
1780~1980 MHz |
|
Insertion Loss in Passbands |
≤1.0 dB |
|
VSWR |
≤1.4:1 |
|
Rejection |
≤95dB @DC-1480 MHz ≤95dB @2280 MHz-2600MHz ≤50dB @2600 MHz-6000MHz |
|
Impedance |
50Ω |
|
Material |
Aluminum |
|
Connectors |
SMA-Female |
|
Power |
50W |
|
Surface Treatment |
Spray Paint |
|
Dimension Tolerance |
As Below↓ (±0.5mm） |

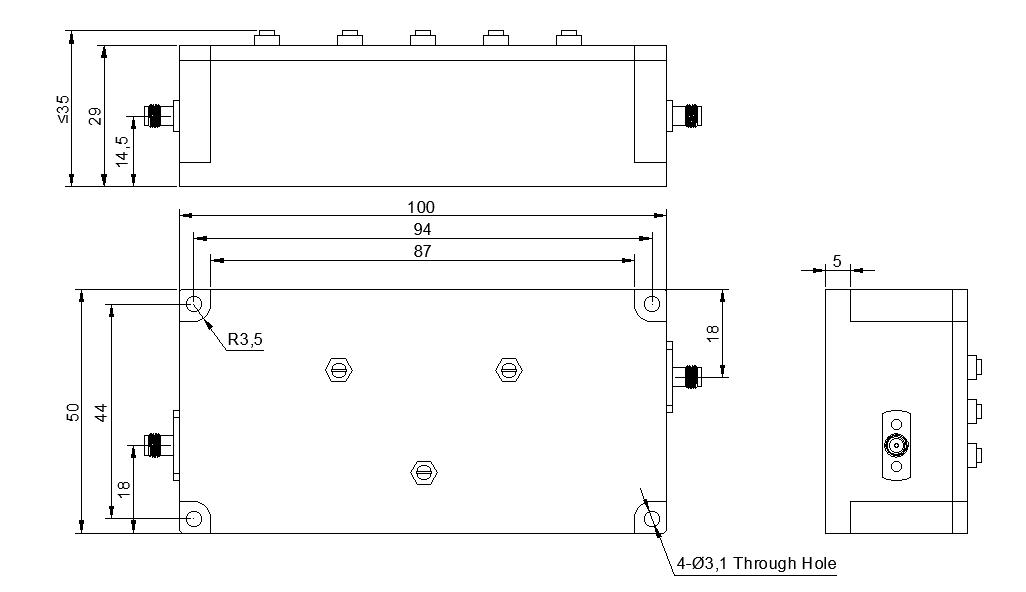

Outline Drawing
1780-1980MHz Cavity Filter Product Details
The 1780-1980MHz Cavity Filter is constructed with accuracy and has a passband of 1780~1980 MHz that meets professional radio frequency (RF) communication needs. Its main benefits are a ≤1.0 dB insertion loss, reducing signal attenuation, and a rejection of ≤95 dB in important frequency ranges, providing adequate blockage of non-relevant interference. The 1780-1980 MHz Cavity Filter is made of high-quality aluminum for strength and consistent operation, has an impedance of 50 ohms, and is compatible with standard communications systems. Keenlion, as a manufacturing plant, provides a wide range of options for the customization of the 1780-1980MHz Cavity Filter (CF), including the possibility of changing the main parameters according to your requirements.
