880-906MHz/925-951MHz Cavity Diplexer Microwave Dual Band RF Duplexer
The 880-906MHz/925-951MHz Cavity Diplexer features dual passbands (880-906MHz for Rx and 925-951MHz for Tx) with insertion loss ≤1dB and VSWR ≤1.3:1, ensuring minimal signal loss and stable transmission. The Cavity Diplexer is manufactured from high grade aluminium coated with black paint, rendering it robust and resistant to weathering. This unit can handle operation at 20 W of power, is rated at 50 Ohm impedance, supports SMA connectors for input and output terminations, and is manufactured with a size tolerance of ±0.5 mm to ensure a proper fit to the equipment. This Cavity Diplexer also achieves a minimum of 60 dB isolation between the two passbands, thus virtually eliminating any signal interference. As a manufacturer of Cavity Diplexer, Keenlion can produce Cavity Diplexer devices tailored to meet your specific needs.
Cavity Duplexer Main Indicators
|
Number |
Items |
Specifications |
|
|
1 |
Rx |
Tx |
|
|
2 |
Centre Frequency |
893MHz |
938MHz |
|
3 |
Passband |
880-906MHz |
925-951MHz |
|
4 |
Insertion Loss |
≤1dB |
≤1dB |
|
5 |
VSWR |
≤1.3:1 |
≤1.3:1 |
|
6 |
Rejection |
≥60dB @925-951 MHz |
≥60dB @880-906 MHz |
|
7 |
Impedance |
50 Ohms |
|
|
8 |
Input & Output Termination |
SMA Female |
|
|
9 |
Operating Power |
20W |
|
|
10 |
Operating Temperature |
-20℃ To +65℃ |
|
|
11 |
Material |
Aluminum |
|
|
12 |
Surface Treatment |
Black Paint |
|
|
13 |
Size |
As below ↓（±0.5mm） Unit/mm |
|

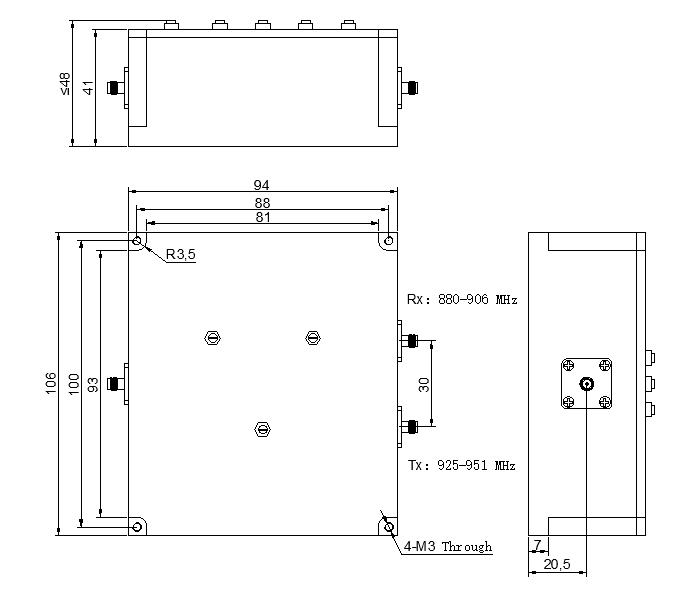

Outline Drawing
Customization supported
The 880-906 MHz/925-951 MHz Cavity Diplexer from Keenlion gives you a low-loss, high-isolation method to separate the Rx and Tx paths of your system. We’re a custom-oriented company, so we manufacture every 880-906 MHz/925-951 MHz Cavity Diplexer specifically for your system.
