Custom DC-0.7GHz Low Pass Filter | RF Filter Manufacturer – Keenlion
Looking for a DC~0.7GHz Low Pass Filter that actually delivers on its specs? Keenlion‘s DC~0.7GHz Low Pass Filter passes signals from DC to 0.7GHz with ≤1.0dB insertion loss and ≤1.6:1 VSWR — meaning clean fundamental signals and minimal reflections. With ≥50dB attenuation from 1080MHz all the way to 8000MHz, this DC~0.7GHz Low Pass Filter provides the harmonic suppression your high‑power front‑end needs. And since we‘re a real B2B factory, we customize every DC~0.7GHz Low Pass Filter to your exact application.
Main indicators
|
Product Name |
|
|
Items |
Specifications |
|
Passband |
DC~0.7GHz |
|
Insertion Loss In Passbands |
≤1.0 dB |
|
VSWR |
≤1.6:1 |
|
Attenuation |
≥50dB@1080-8000MHz |
|
Impedance |
50 Ω |
|
Connectors |
N-Female |
|
Power |
100W |
|
Material |
Aluminum |
|
Surface Treatment |
Sliver |
|
Size |
As Below↓（±0.3mm） Unit/mm |

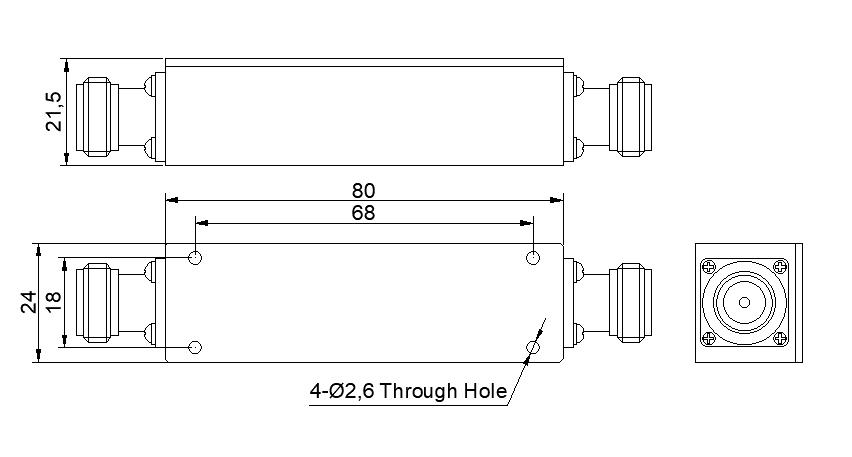

Outline Drawing
Strong Performance, Front to Back
This DC~0.7GHz Low Pass Filter is built to pass exactly what you want and kill what you don‘t. The passband runs from DC to 0.7GHz with ≤1.0dB insertion loss — low enough to preserve signal strength — and VSWR stays at or below 1.6:1, so reflections won‘t compromise your transmitter or receiver. On the stopband side, the DC~0.7GHz Low Pass Filter delivers ≥50dB attenuation from 1080MHz through 8000MHz. That‘s the kind of deep harmonic rejection that keeps amplifier chains clean and spurs out of sensitive bands. This DC~0.7GHz Low Pass Filter handles 100W continuous power, comes with N‑Female connectors, and features aluminum housing with a silver finish. The 50Ω impedance and ±0.3mm dimension tolerance round out a solid mechanical package.
Custom Built for Real B2B Systems
What makes this DC~0.7GHz Low Pass Filter different is Keenlion itself. We‘re a factory, not a distributor. So when you need a DC~0.7GHz Low Pass Filter with modified connectors, different power handling, or tweaked rejection characteristics, we simply build it that way. No off‑the‑shelf compromises. Send your RFQ today — tell us your target frequency range or packaging constraints, and we‘ll deliver a DC~0.7GHz Low Pass Filter that fits your system perfectly.
