China 880-915MHz/925-960MHz/1715-1790MHz/1805-1880MHz 4 Combiner Manufacture and Factory

880-915MHz/925-960MHz/1715-1790MHz/1805-1880MHz 4 Way Combiner Quadplexer | RF Quadplexer for GSM/DCS

Short Description:

The Big Deal

• High power,up to 100W

• Four Bands in One Unit – Combines 880-915, 925-960, 1715-1790, and 1805-1880MHz.

•4 Way Combiner offers signal combining

•Model Number:KCB-897.5/1842.5-01S

keenlion can provide customize 4 Way Combiner, free samples, MOQ≥1

Any inquiries we are happy to reply, pls send your questions and orders.

Send email to us

Product Detail

Product Tags

Need to combine four RF bands into a single antenna path? The RF 4 Way Combiner from Keenlion integrates 880-915MHz, 925-960MHz, 1715-1790MHz, and 1805-1880MHz with ≤2dB insertion loss and ≥80dB rejection. This RF 4 Way Combiner handles 100W power with SMA-Female connectors in a black-painted aluminum housing. As a B2B factory, we customize every RF 4 Way Combiner to your exact specifications.

Main indicators

Centre Frequency	897.5MHz	942.5MHz	1752.5MHz	1842.5MHz
Passband	880-915MHz	925-960MHz	1715-1790MHz	1805-1880MHz
Insertion Loss	≤2dB
VSWR	≤1.5
Rejection	≤-80dB@925-960MHz ≤-80dB@1715-1880MHz	≤-80dB@880-915MHz ≤-80dB@1715-1880MHz	≤-80dB@880-960MHz ≤-80dB@1805-1880MHz	≤-80dB@880-960MHz ≤-80dB@1715-1790MHz
Impedance	50Ω
Input & Output Termination	SMA-Female
Operating Power	≤100W
Material	Aluminium
Surface Treatment	Black Paint
Size	As Below ↓(±0.5mm) Unit/mm

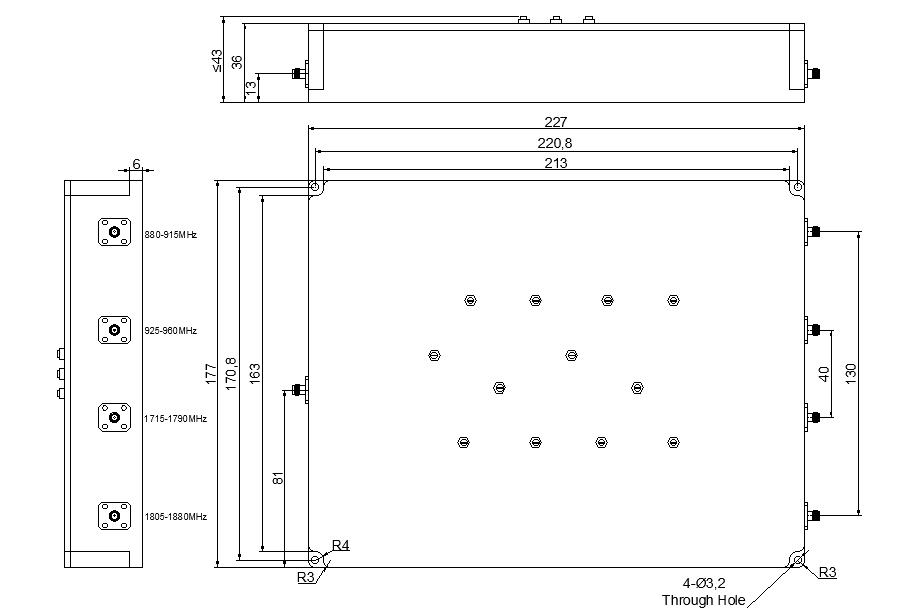

Outline Drawing

Four Bands, One Clean Output

A combiner should merge signals without creating interference between bands. This RF 4 Way Combiner accepts four inputs — GSM uplink (880-915MHz), GSM downlink (925-960MHz), DCS uplink (1715-1790MHz), and DCS downlink (1805-1880MHz) — and delivers a single combined output. The RF 4 Way Combiner maintains ≤2dB insertion loss across all four passbands, so your signal strength stays intact. VSWR is ≤1.5:1, minimizing reflections that could disrupt your base station or repeater.

Isolation That Prevents Cross-Talk

What makes this RF 4 Way Combiner truly effective is its port-to-port isolation. Each input sees ≥80dB rejection from signals in the other three bands. That means GSM uplink noise won’t leak into your DCS downlink path — no desensitization, no dropped calls. The RF 4 Way Combiner handles 100W continuous power and operates at 50Ω impedance. The aluminum housing with black paint finish and SMA-Female connectors ensures reliable performance in telecom shelters and outdoor cabinets.

Built to Your Requirements — Because We’re a Factory

Keenlion doesn’t just sell off-the-shelf combiners. Every RF 4 Way Combiner can be tailored — different frequency bands, custom connectors, or modified rejection characteristics. We’re an ISO9001:2015 certified factory with over 20 years of RF manufacturing experience. Send your RFQ today. Your custom RF 4 Way Combiner is ready to be built.
