DC-8GHz Low Pass Filter SMA-Female Cavity Filter
Cavity Filter offers DC-8ghz wide frequency bandwidth for precise filtering.Cavity Filter with high selectivity and rejection of unwanted signals.At Keenlion, we prioritize product quality and longevity. Our Low Pass Filters are built to last and provide consistent performance over an extended period.With Keenlion's Low Pass Filter, you can expect exceptional signal filtration, enhanced signal quality, and improved system performance.
Main indicators
|
Items |
Specifications |
|
|
1 |
Passband |
DC~8GHz |
|
2 |
Insertion Loss in Passbands |
≤1.0 dB |
|
3 |
VSWR |
≤1.5:1 |
|
4 |
Attenuation |
≥30dB@10-16GHz |
|
5 |
Impedance |
50 OHMS |
|
6 |
Connectors |
SMA-Female |
|
7 |
Power |
10W |
|
8 |
Temperature Range |
-30℃~﹢70℃ |
|
9 |
Material |
Oxygen-free copper |
|
10 |
Surface Treatment |
Oxygen free copper color |
|
11 |
Size |
As below ↓ |

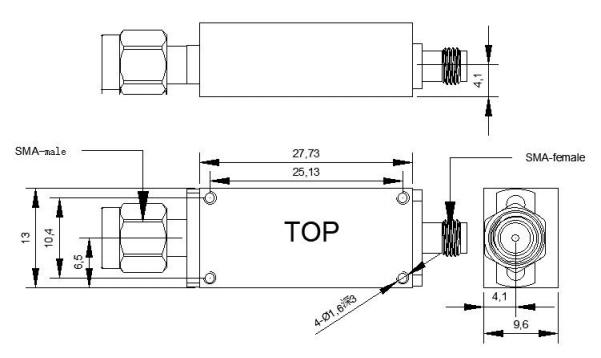

Outline Drawing
Low Pass Filter Overview
Keenlion, a leading manufacturing factory, is excited to introduce the DC-8GHz Low Pass Filter, a high - performance solution designed to meet the demands of modern communication systems. This advanced filter offers superior signal processing capabilities, ensuring reliable and efficient operation across a wide range of applications.
Low Pass Filter Details
Engineered for Demanding Applications
Our DC-8GHz Low Pass Filter ensures pristine signal integrity across communications, radar, and test equipment. It blocks unwanted harmonics above 8GHz while maintaining minimal insertion loss in the passband. Ideal for 5G infrastructure, satellite systems, and military electronics where spectral purity is non-negotiable.
Company Advantages
Custom-Built Flexibility
As a certified manufacturing factory, Keenlion adapts every DC-8GHz Low Pass Filter to your needs:
Frequency roll-off steepness optimization
Connector types (SMA, N-Type, etc.)
Operating temperature ranges (-40°C to +85°C)
Shielding for EMI-sensitive environments
Quality & Value Guaranteed
We combine automated production with rigorous testing to guarantee:
High Reliability: MIL-STD compliant materials and processes
Rapid Delivery: 15-30 day standard lead time (samples in 15 days)
Cost Efficiency: 30% savings versus distributor pricing
End-to-End Partnership
From prototype to volume production, Keenlion provides:
Direct factory collaboration eliminates compromises – we scale with your demands.
Pre-Sales: Application consulting + sample validation
Production: Real-time order tracking
After-Sales: 24/7 troubleshooting and replacement support
