4-8GHz Band Pass Filter ,Small Size Microstrip Out-of-Band Filtering Frequency Filter
Need a reliable 4-8GHz Band Pass Filter for your RF system?Keenlion provides high-performance 4-8GHz Band Pass Filter with excellent stability and customization service. Our 4-8GHz Band Pass Filter covers 4~8GHz passband, features ≤1.0dB insertion loss, and is fully adaptable to various RF application scenarios, directly supplied from the factory for cost savings.This 4-8GHz Band Pass Filter wears its material openly because plated surfaces crack, flake, and drift. Oxygen-free copper ages predictably, maintaining consistent electrical contact across decades.
Main Indicators
|
Product Name |
|
|
Items |
Specifications |
|
Passband |
4~8 GHz |
|
Insertion Loss in Passbands |
≤1.0 dB |
|
VSWR |
≤2.0:1 |
|
Rejection |
15dB (min)@3GHz 15dB (min)@9GHz 40dB (min)@16GHz |
|
Impedance |
50 OHMS |
|
Material |
Oxygen free copper primary color |
|
Connectors |
SMA-Female&SMA-Male |
|
Power |
10W |
|
Temperature Range |
-35℃~﹢70℃ |
|
Dimension Tolerance |
As Below↓ (±0.5mm） |

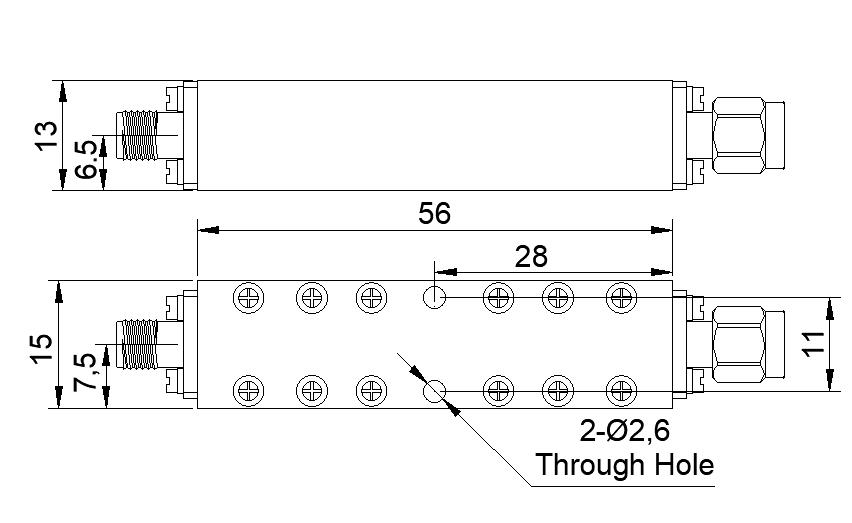

Outline Drawing
Superior Out-of-Band Rejection
This 4-8GHz Band Pass Filter provides 15dB min rejection at 3GHz and 9GHz, plus 40dB min at 16GHz. When you specify a 4-8GHz Band Pass Filter, Keenlion guarantees clean stopbands.
Built for Installers, Not Just Spec Sheets
This 4-8GHz Band Pass Filter uses SMA female and male connectors that thread positively onto standard cables. Rated 10 watts, it survives brief overloads during antenna alignment errors. Temperature range -35°C to +70°C handles tower top environments without performance walks. Dimensional tolerance of ±0.5 mm ensures your mounting brackets fit first time.
