Small Size 4-12GHz Passive RF Bandpass Filter Oxygen-Free Copper RF Filter
Keenlion is a professional manufacturing factory provides high quality 4-12GHz RF Band Pass Filter that provide stable performance. The 4-12 GHz Band Pass Filter has a 4-12 GHz pass band, has less than or equal to 1.5 dB of insertion loss, and we offer customization to meet your requirements. The 4-12 GHz Band Pass Filter has very low insertion loss and has high rejection. We are a B2B manufacturer, so we offer full customisation to match your exact frequency requirements.
Main Indicators
|
Product Name |
|
|
Items |
Specifications |
|
Pass band |
4~ 12GHz |
|
Insertion Loss in Passbands |
≤1.5 dB |
|
VSWR |
≤2.0:1 |
|
Rejection |
15dB (min)@3GHz 15dB (min)@13GHz |
|
Impedance |
50 OHMS |
|
Material |
Oxygen-Free Copper |
|
Connectors |
SMA-Female&SMA-Male |
|
Power |
10W |
|
Surface Treatment |
Oxygen free copper primary color |
|
Temperature Range |
-35℃~﹢70℃ |
|
Dimension Tolerance |
As Below↓ (±0.5mm） |

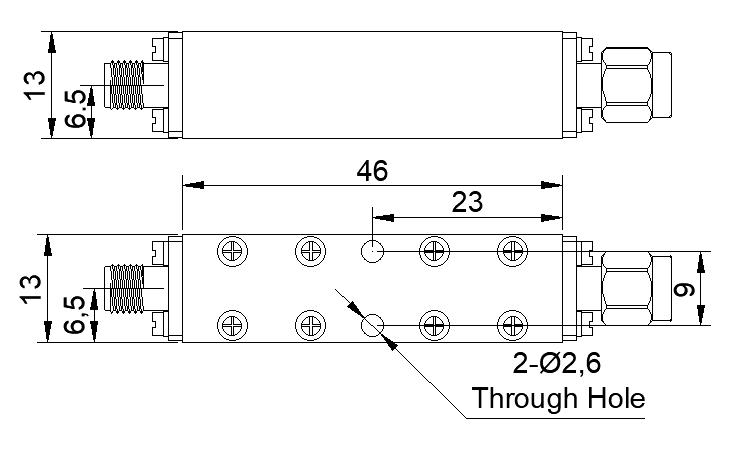

Outline Drawing
Product Details
High-performing 4–12GHz RF Bandpass Filter: The 4–12GHz RF Bandpass Filter is crafted using oxygen free copper, which maintains its natural color through professional surface treatment. The filter operates from -35°C to +70°C and has a ±0.5mm tolerance on its dimensions, which makes installation simple. The 4–12GHz RF Bandpass Filter has a 50 Ohm impedance, 10 watt power, and SMA Female and Male connectors for wide compatibility.
Trustworthy customization and filtering: You can rely on this 4-12GHz RF Band Pass Filter for dependable filtering as it guarantees a maximum 2.0:1 VSWR and at least 15dB of rejection at both 3GHz and 13GHz frequencies. Keenlion provides (manufactures) customized 4-12GHz RF Band Pass Filters that are manufactured to meet your specific needs (parameters) because we manufacture our products in-house. This means that you get high-quality, reliable 4-12 GHz RF Band Pass Filters at a great value (low cost) directly from Keenlion (the factory).
Built for Demanding RF Environments
This 4-12GHz RF Band Pass Filter is constructed from oxygen-free copper, a material chosen for its excellent conductivity and corrosion resistance. The natural copper finish eliminates the need for additional coatings that could affect electrical performance. Operating reliably from -35°C to +70°C, this RF band pass filter suits both laboratory and field deployment scenarios.
