7 Way Combiner 880-2400MHZ RF Power Combiner Multiplexer
This power combiner combines 7 input signals.Keenlion, a leading manufacturing factory, is proud to introduce the 880-2400MHz 7 Band Combiner, a cutting-edge solution designed to meet the complex demands of modern telecommunications. This advanced combiner offers unparalleled performance and reliability, making it an essential component for communication networks.
Main Indicators
|
Center Frequency (MHz) |
897.5 |
948 |
1747.5 |
1842.5 |
1950 |
2140 |
2350 |
|
Pass Band ( MHz ) |
880-915 |
925-960 |
1710-1785 |
1805-1880 |
1920-1980 |
2110-2170 |
2300-2400 |
|
Insertion loss （dB） |
≤2.0 |
||||||
|
Ripple（ dB ） |
≤1.5 |
||||||
|
VSWR |
≤1.5:1 |
||||||
|
Refuse（ dB ） |
≥80@ 925 ～ |
≥80@ 880 ～
≥40@1710 ～
2400MHz |
≥80@1805 ～
2400MHz
≥80@ 880 ～
960MHz |
≥80@ 880 ～
1785MHz
≥40@ 1920 ～
2400MHz |
≥40 @ 880 ～
≥80@2110 ～
2400MHz |
≥80@ 880 ～
1980MHz
≥80@2300 ～
2400MHz |
≥80@880 ～
2170MHz |
|
Power（W） |
≥50W |
||||||
|
Surface Treatment |
Paint Blcak |
||||||
|
Connector |
IN put SMA-Female OUT put N- Female |
||||||
|
Size |
As Below↓（±0.5mm） |
||||||

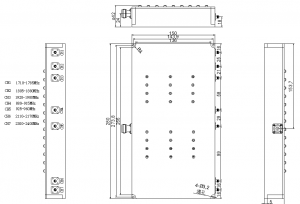

Outline Drawing
Key Features and Company Advantages
The 7 Way Combiner operates across 880–2400MHz (customizable to 8 GHz), delivering:
Customization: Tailored solutions to meet specific client requirements.
High Resistance Band Rejection: Ensures minimal interference and optimal signal clarity.
Samples Available: Experience the quality firsthand with our sample offerings.
High Quality: Rigorous testing and quality control ensure superior performance.
Competitive Factory Prices: Direct manufacturing ensures cost - effective solutions.
Professional After - Sales Support: Comprehensive support for seamless integration and long - term reliability.
7 Way Combiner Product Details
The 880-2400MHz 7 Band Combiner is designed to integrate multiple frequency bands into a single transmission path, significantly enhancing the efficiency and capacity of communication systems. This combiner is ideal for telecommunications, where multiple services need to coexist without interference. The high resistance band rejection feature ensures that each band operates independently, minimizing signal degradation and maintaining high - quality communication.
Keenlion’s commitment to quality is evident in every aspect of the 880-2400MHz 7 Band Combiner. Our manufacturing process includes rigorous testing and quality control measures to ensure that each unit meets the highest standards. By offering samples, we allow our clients to experience the superior performance firsthand, providing confidence in their investment.
Our competitive factory prices reflect our direct manufacturing approach, eliminating unnecessary middle - man costs. This ensures that our clients receive high - quality products at cost - effective prices. Additionally, our professional after - sales support team is dedicated to providing comprehensive assistance, from technical support to troubleshooting, ensuring that our clients have a seamless experience from purchase to long - term use.
7 Way Combiner Customizable Solutions for Diverse Needs
The 880-2400MHz 7 Band Combiner from Keenlion is a powerful solution for modern telecommunications. With customization options, high resistance band rejection, available samples, high - quality manufacturing, competitive prices, and professional after - sales support, Keenlion is your trusted partner for advanced communication solutions.
